Site TREG

TREG

Tregnago, Verona

  • Id: 314
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 45.522927
  • Longitude [°]: 11.160786
  • Elevation [m]: 341
  • StartTime: 07/09/2011 17:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Tregnago, Verona
  • Site Name: TREG
  • Station Name: IV.TREG
  • Sensors: Lunitek Tellus_5s (m/s); KINEMETRICS EPISENSOR-FBA-ES-T-CL-2G-FS-40-VPP (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
No Data Available
Data Quality

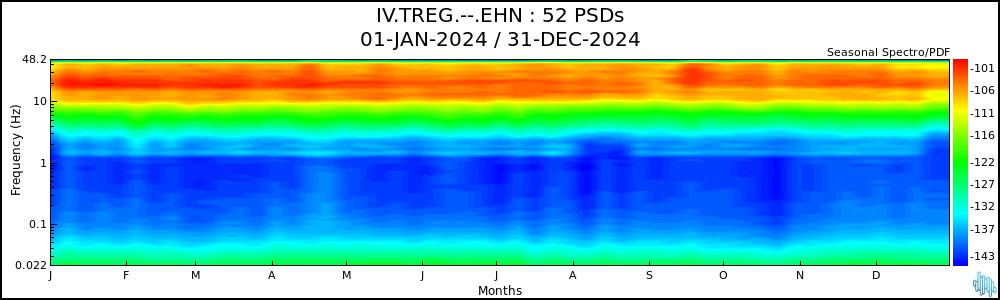

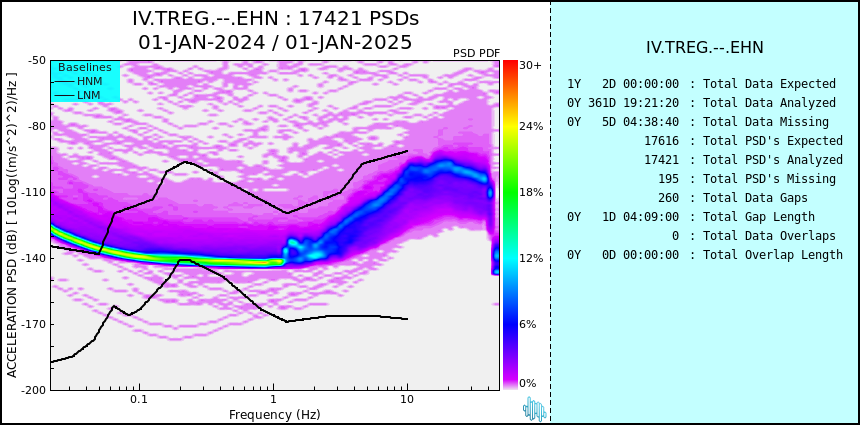

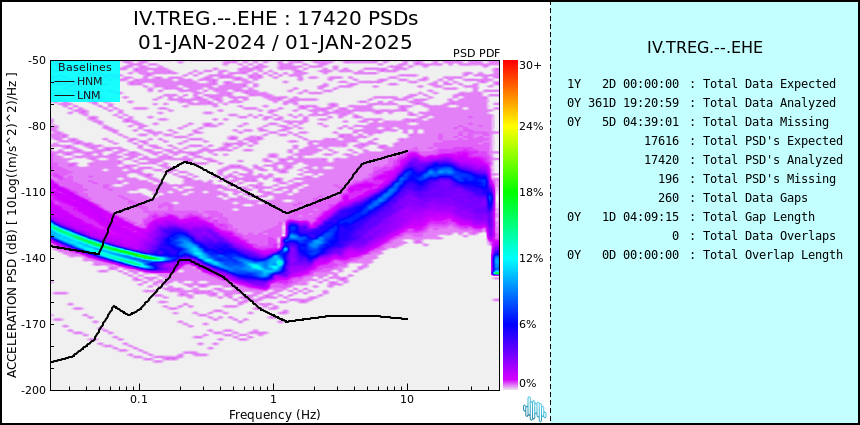

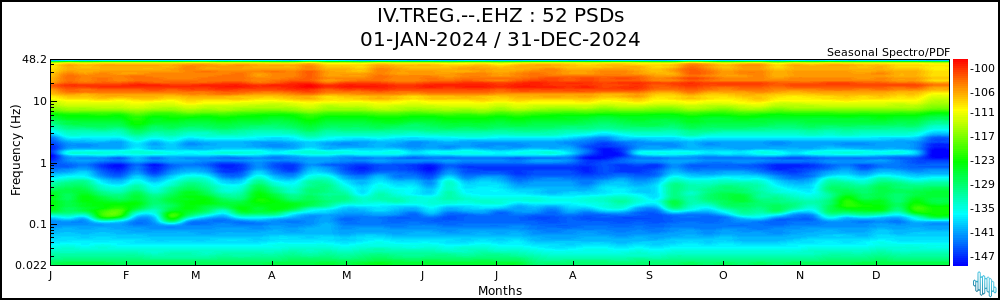

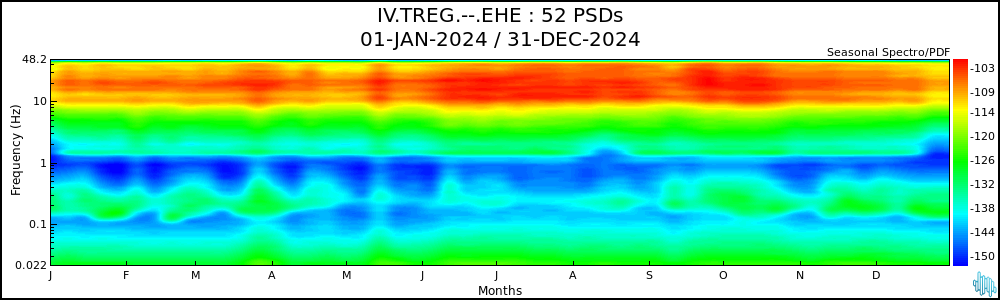

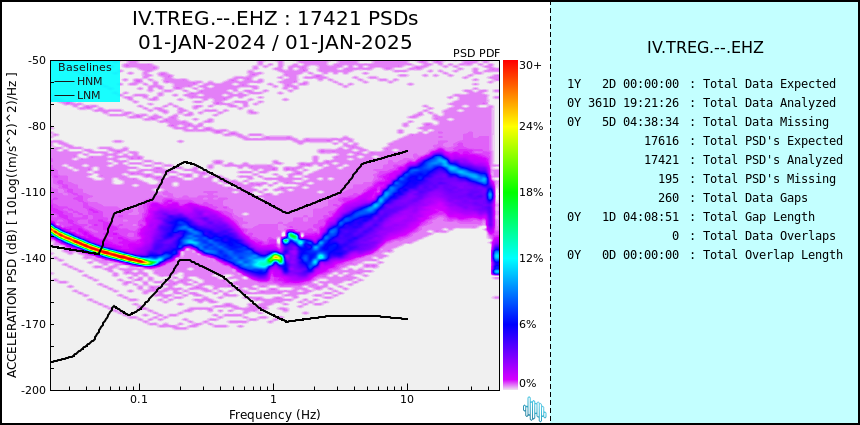

Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values
E HN Img Img 60
N HN Img Img 60
Z HN Img Img 60

Geology

Stratigraphy
Site name Reference System Latitude [°] Longitude [°] Drilling ID Depth [m] Elevation [m] Source Site Distance [m] Drilling Date
TREG GCS_WGS_1984 45.513 11.158 167082 300 water well 1067
TREG GCS_WGS_1984 45.519 11.153 165222 360 water well 651
TREG GCS_WGS_1984 45.528 11.165 165232 297 water well 617
Geological Review
Preferred Bibliography Monography Conceptual Model Value
Yes Manganello P., Lovati S., Puglia R., Brunelli G., Lorenzetti A., Massa M., Site characterization report at the seismic station IV.TREG – Tregnago (VR), Working group INGV "Agreement DPC-INGV 2019-21, All.B2- WP1, Task 2” (2021)
download 0
No Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 2
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
No BASIN 30.00000 ANGLE_LE15 1.45000 Img
Yes BASIN 10.00000 ANGLE_LE15 0.09000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio VERONA ISPRA 2010 B4 unconsolidated Mixed clay-sand-gravel terreni a granulometria mista (f+m+g) 1
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio VERONA INSPIRE alluvioni terrazzate grossolane alluvial_plain_setting Holocene - Holocene sedimentary_layering deposition_from_moving_fluid
Fault Classification
No Data Available
Landslide Classification
No Data Available
Cross Section
Cartography Geological
Cross Section 		Latitude 1 [°] Longitude 1 [°] Latitude 2 [°] Longitude 2 [°] Spatial Ref Sys
Foglio VERONA EST - Carta Geologica d’Italia 1:50,000 Img 45.52251 11.15693 45.52346 11.16543 GCS_WGS_1984

Seismology

HVEQ
No Data Available
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 16/07/2016 00:00:00 16/07/2016 23:59:59 0.1 15 EH Img Img 1
SSREQ
No Data Available
Signal Polarization
Preferred Type Start time End time Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture ellipticity Picture dip Picture strike Number of peaks Number of earthquake
Yes Noise 16/07/2016 00:00:00 16/07/2016 00:00:00 0.1 15 EH Img Img Img 2 0

Geophysics

Subsoil Model
Id Type Investigation Pref. Latitude [°] Longitude [°] Elevation [m] Figure Monography
62 VELOCITY_PROFILE MASW YES 45.5229 11.1608 342 Img Img

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 No Slope: 1.38°, Vs30: 385 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2024-02-23 15:07:26
DEM T1 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-23 15:07:25
DEM T1 No dem_30m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-10 11:35:56
OTHER T1 No GoogleEarth EC8 2022-02-10 11:36:10
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B No Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-18 08:26:15
GEOLOGY C No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:56
GEOLOGY C No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
MASW B Yes Vs30=391 m/s EC8 Manganello P., Lovati S., Puglia R., Brunelli G., Lorenzetti A., Massa M., Site characterization report at the seismic station IV.TREG – Tregnago (VR), Working group INGV "Agreement DPC-INGV 2019-21, All.B2- WP1, Task 2” (2021)
2022-02-14 17:52:05
MASW B Yes Vseq=391 m/s NTC18 Manganello P., Lovati S., Puglia R., Brunelli G., Lorenzetti A., Massa M., Site characterization report at the seismic station IV.TREG – Tregnago (VR), Working group INGV "Agreement DPC-INGV 2019-21, All.B2- WP1, Task 2” (2021)
2022-02-14 17:52:06
GEOLOGY D No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-14 17:52:07
