Site LAV9

LAV9

Lanuvio, Roma

  • Id: 157
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 41.67747
  • Longitude [°]: 12.69864
  • Elevation [m]: 351
  • StartTime: 01/03/2003 00:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Lanuvio, Roma
  • Site Name: LAV9
  • Station Name: IV.LAV9
  • Sensor and digitizer: NANOMETRICS TRILLIUM-40S (m/s); KINEMETRICS EPISENSOR (m/s**2)
  • Q Final:
  • Q final monography:
  • Note:


Map Layer (100k and 50k from https://www.isprambiente.gov.it)

Housing

Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img Img PILLAR GOOD BUILDING The station is installed in the warehouse under Villa Sforza Cesarini (Lanuvio Library) in via Sforza Cesarini. 7
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

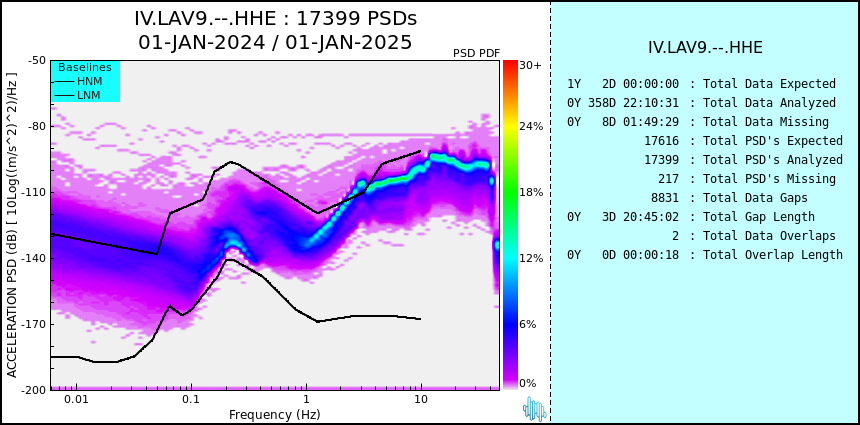

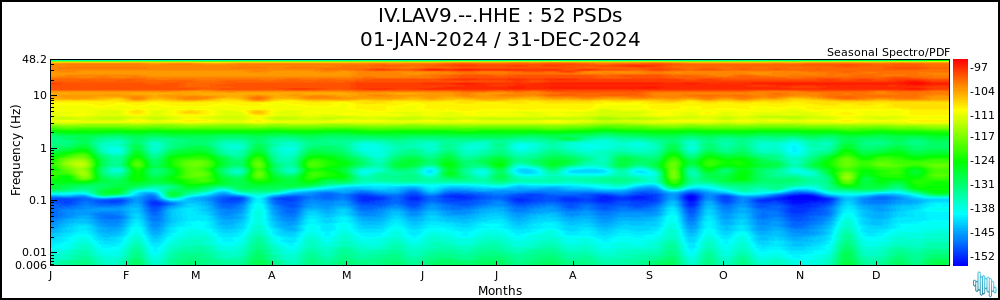

E HN Img Img 60

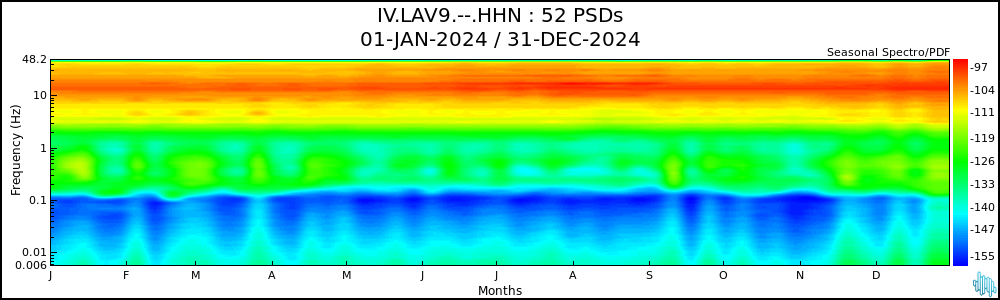

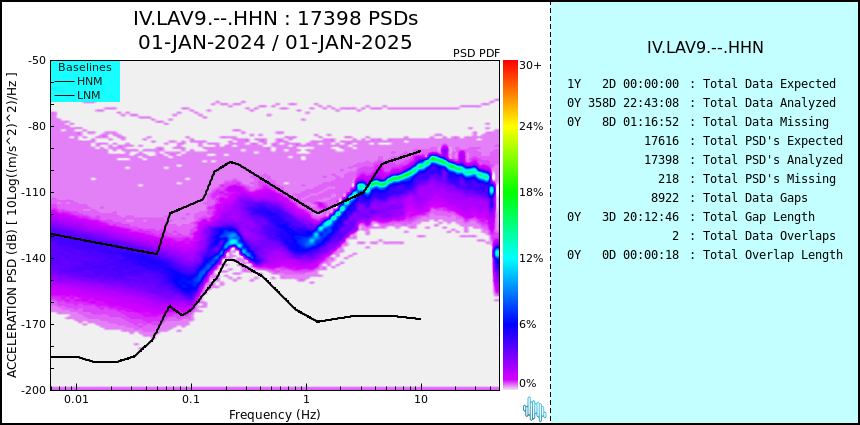

N HN Img Img 60

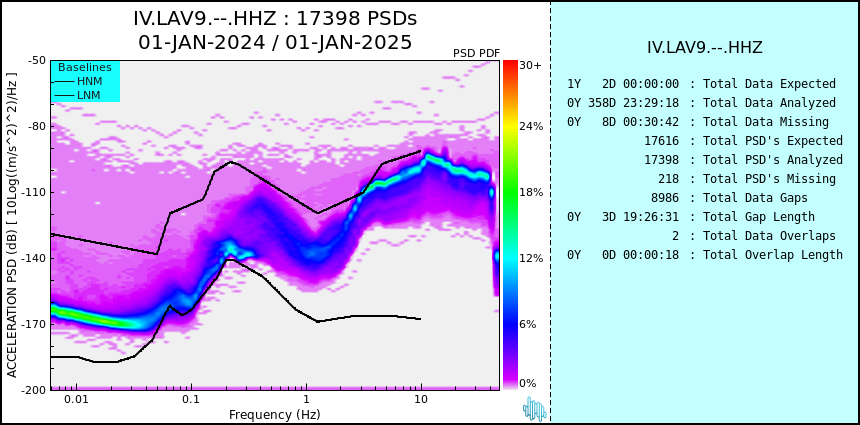

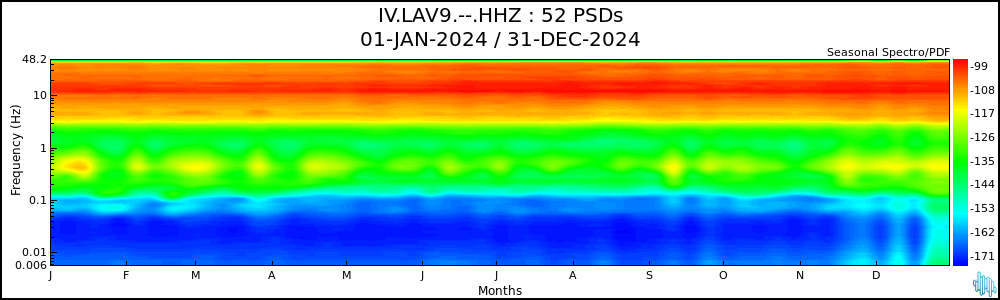

Z HN Img Img 60

Geology

Stratigraphy
No Data Available
Geological Review
Preferred Bibliography Monography Conceptual model strata
Yes BONOMO R., D’AMBROGI C., D’OREFICE M., FIORENZA D., GAFÀ R. M. MONTI G.M., Di MANNA M., ROMA M., VITA L., Final Report Development of a conceptual geological model for five seismic station with accelerometer of the INGV Seismic Network, Internal Report ISPRA-INGV (2017)
download 0
No Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 2
Morphological Classification
Preferred Type Note Dem Resolution [m] Slope Range Slope[°] Slope Range Figure
No RELIEF 30.00000 ANGLE_LE15 11.80000 Img
Yes RELIEF 10.00000 ANGLE_LE15 9.26000 Img
Lithological Classification
Preferred Cartography Title Coding type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio ROMA ISPRA 2010 D7 consolidated Pedogenic tephra tufi pedogenizzati 2
Geological Classification
Preferred Cartography Title Coding type Geological units Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio ROMA INSPIRE manifestazioni eruttive finali terrestrial_setting Pleistocene - Pleistocene compositional_layering pyroclastic_eruption
Fault Classification
No Data Available
Landslide Classification
Cartography Title: Distance [m] Activity
Italian Landslide Inventory (IFFI) 281 ACTIVE
Cross Section
Cartography Geological
Cross Section 		Latitude 1 [°] Longitude 1 [°] Latitude 2 [°] Longitude 2 [°] Spatial Ref Sys
Foglio ROMA - Carta Geologica d’Italia 1:100,000 Img 41.67827 12.69488 41.67505 12.70934 GCS_WGS_1984

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HH Img 1 37
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 11/02/2015 00:00:00 11/02/2015 23:59:58 DAYTIME, SEASONAL 0.1 15 HH Img Img 2
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
Id Type Investigation Pref. Latitude [°] Longitude [°] Elevation [m] Figure Monography
15 VELOCITY_PROFILE MASW, SA YES 41.67747 12.69864 351 Img Img

Site Classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 Yes Slope: 6.51°, Vs30: 669 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2025-01-27 11:44:43
OTHER T1 No googlEarth_10m EC8 2022-02-07 16:50:16
DEM T1 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-19 12:43:24
DEM NC No dem_30m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-07 16:50:37
OTHER T2 No GoogleEarth EC8 2022-02-07 16:50:55
Site Class
Site Class Type Site Class Value Preferred Site Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B No Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-18 08:26:15
GEOLOGY C No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:56
GEOLOGY C No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
ARRAY_MEASUREMENT, MASW C Yes Vseq=286 m/s derived from the bibliography velocity profile NTC18 Cara F., Di Giulio G., Vassallo M., Milana G., Bordoni P., Cultrera G., Mercuri A., Famiani D., Carlucci G., Site characterization of station IV.LAV9 (LANUVIO) of Italian National Seismic Network, Working group INGV of DPC-INGV 2016 agreement All. B2 Task B (2016)
2022-02-15 12:41:21
ARRAY_MEASUREMENT, MASW C Yes Vs30=286 m/s EC8 Cara F., Di Giulio G., Vassallo M., Milana G., Bordoni P., Cultrera G., Mercuri A., Famiani D., Carlucci G., Site characterization of station IV.LAV9 (LANUVIO) of Italian National Seismic Network, Working group INGV of DPC-INGV 2016 agreement All. B2 Task B (2016)
2023-05-26 13:02:49
GEOLOGY C No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-15 12:41:23
