Site CAR1

CAR1

Carolei, Cosenza

  • Id: 55
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 39.2534
  • Longitude [°]: 16.2114
  • Elevation [m]: 680
  • StartTime: 02/04/2010 16:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Carolei, Cosenza
  • Site Name: CAR1
  • Station Name: IV.CAR1
  • Sensors: NANOMETRICS TRILLIUM-40S (m/s); KINEMETRICS EPISENSOR (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing


Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img Img PILLAR NONE VAULT 0
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

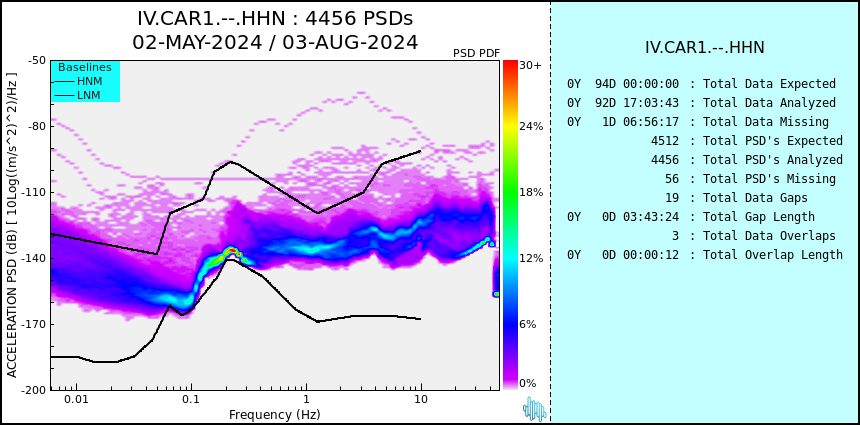

E HH Img Img 101
N HH Img Img 101

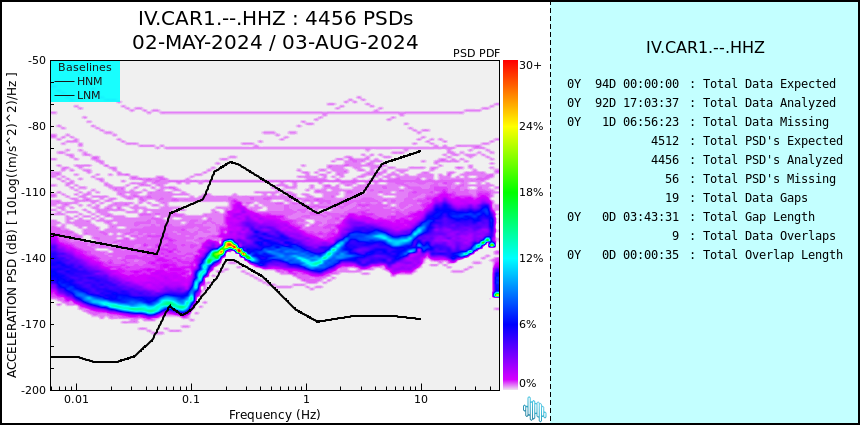

Z HH Img Img 101

Geology


Stratigraphy
No Data Available
Geological Review
No Data Available
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
No RELIEF 30.00000 ANGLE_GT15_LE30 15.47000 Img
Yes BASIN 10.00000 ANGLE_LE15 6.02000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio COSENZA ISPRA 2010 A9 consolidated Sandstone and sand arenarie, arenarie + conglomerati, arenarie + sabbie 3
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio COSENZA INSPIRE arenarie marine_setting Serravallian - Tortonian sedimentary_layering deposition_from_water
Fault Classification
No Data Available
Landslide Classification
No Data Available
Cross Section
No Data Available

Seismology


HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HH Img 3 43
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 09/06/2015 00:00:00 09/06/2015 23:59:59 NONE 0.1 15 HH Img Img 2
SSREQ
No Data Available
Signal Polarization
Preferred Type Start time End time Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture ellipticity Picture dip Picture strike Number of peaks Number of earthquake
Yes Noise 09/06/2015 00:00:00 09/06/2015 23:59:59 0.1 15 HH Img Img Img 2 0

Geophysics


Subsoil Model
No Data Available

Site classification


Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 Yes Slope: 5.71°, Vs30: 628 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2024-02-04 17:47:01
DEM T3 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-04 17:47:02
DEM NC No dem_30m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-07 14:49:01
OTHER T2 No GoogleEarth EC8 2022-02-07 14:49:15

Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B Yes Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-24 16:33:08
GEOLOGY B Yes Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-08-10 17:44:21
GEOLOGY B No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
GEOLOGY B No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-15 08:56:29
