Site IVCR

IVCR

Isola Vulcano Cratere

  • Id: 439
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 38.4096
  • Longitude [°]: 14.961
  • Elevation [m]: 172
  • StartTime: 02/11/2021 13:39:31
  • EndTime:
  • Type: PERMANENT
  • Description: Isola Vulcano Cratere
  • Site Name: IVCR
  • Station Name: IV.IVCR
  • Sensors: NANOMETRICS TRILLIUM-40S (m/s)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
No Data Available
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

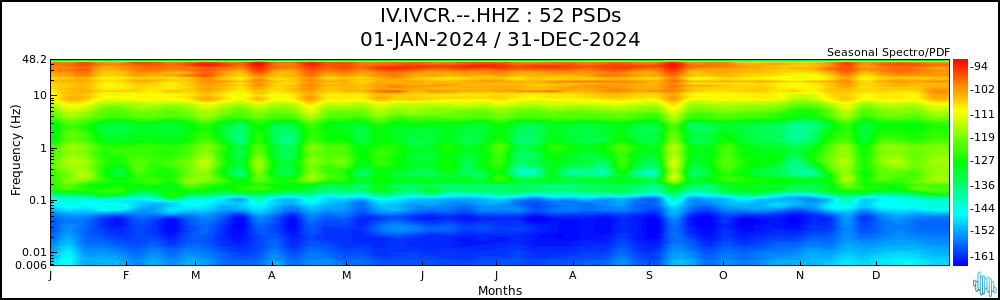

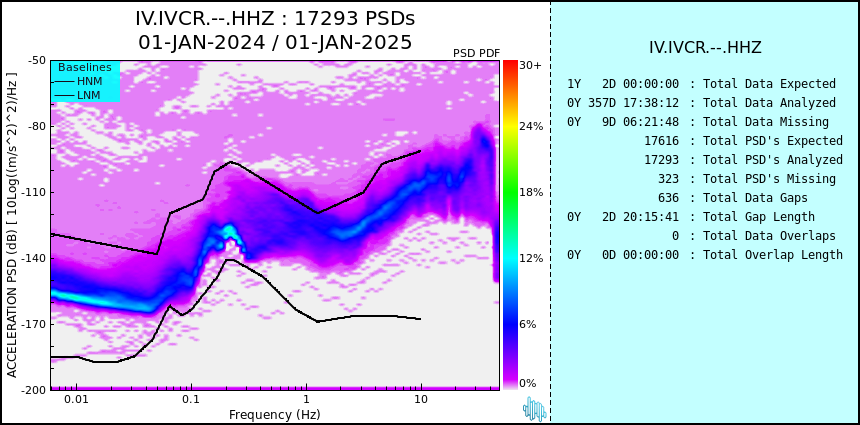

Z HH Img Img 104

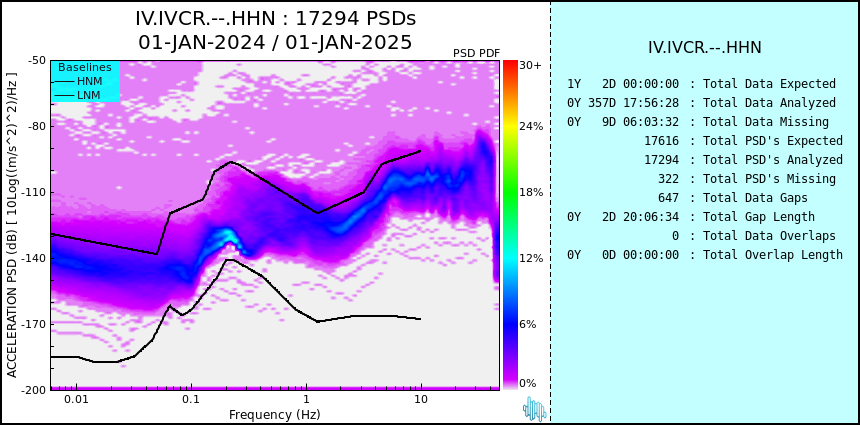

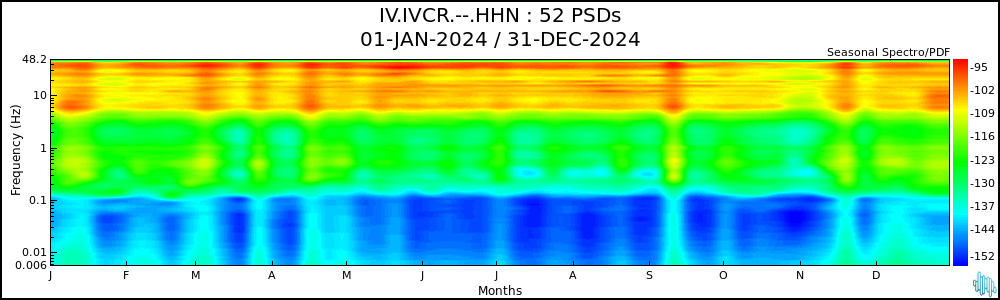

N HH Img Img 104

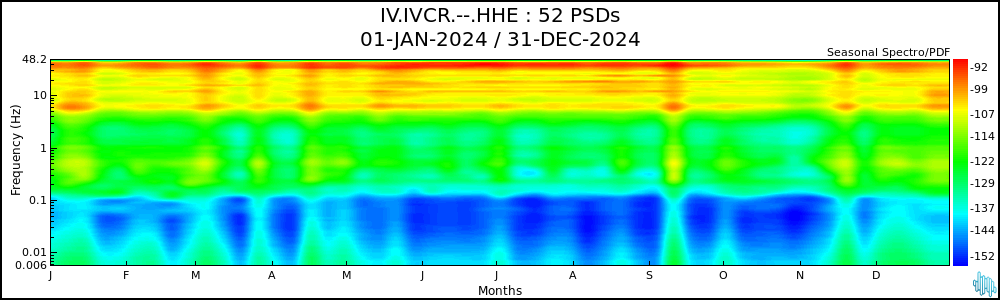

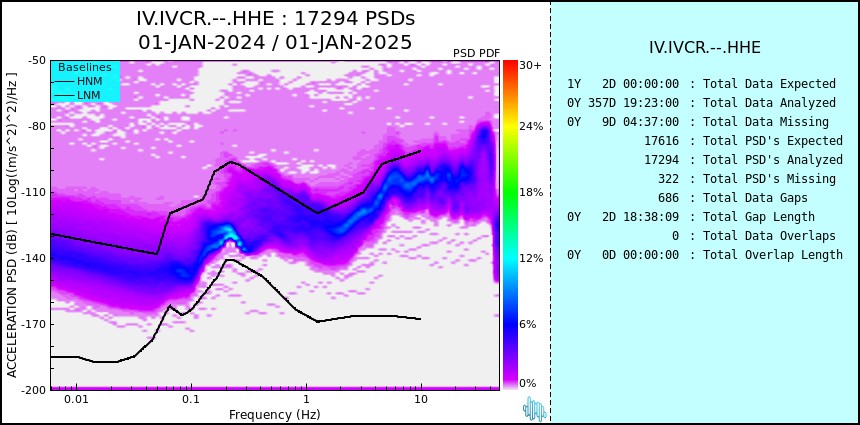

E HH Img Img 104

Geology

Stratigraphy
No Data Available
Geological Review
No Data Available
Morphological classification
No Data Available
Lithological Classification
No Data Available
Geological Classification
No Data Available
Fault Classification
No Data Available
Landslide Classification
No Data Available
Cross Section
No Data Available

Seismology

HVEQ
No Data Available
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 01/01/2024 00:00:00 01/01/2025 00:00:00 SEASONAL 0.1 15 HH Img 2
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
No Data Available

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T2 Yes Slope: 23.41°, Vs30: 1182 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2025-11-27 20:22:25
Site Class
