Site IVLC

IVLC

Ischia - Villa la Colombaia

  • Id: 433
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 40.75909
  • Longitude [°]: 13.872129
  • Elevation [m]: 92
  • StartTime: 05/09/2018 23:59:59
  • EndTime:
  • Type: PERMANENT
  • Description: Ischia - Villa la Colombaia
  • Site Name: IVLC
  • Station Name: IV.IVLC
  • Sensors: GURALP CMG-40T-30S (m/s)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
No Data Available
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

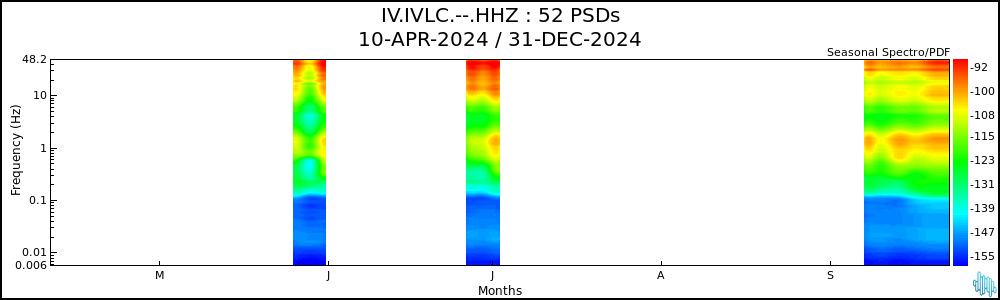

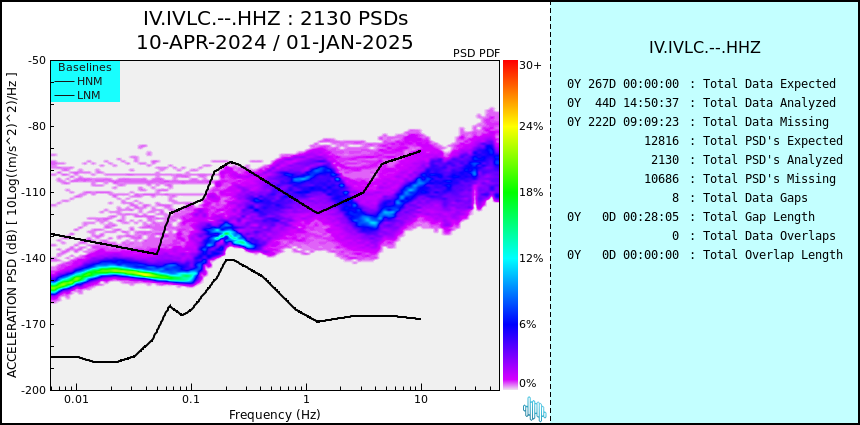

Z HH Img Img 104

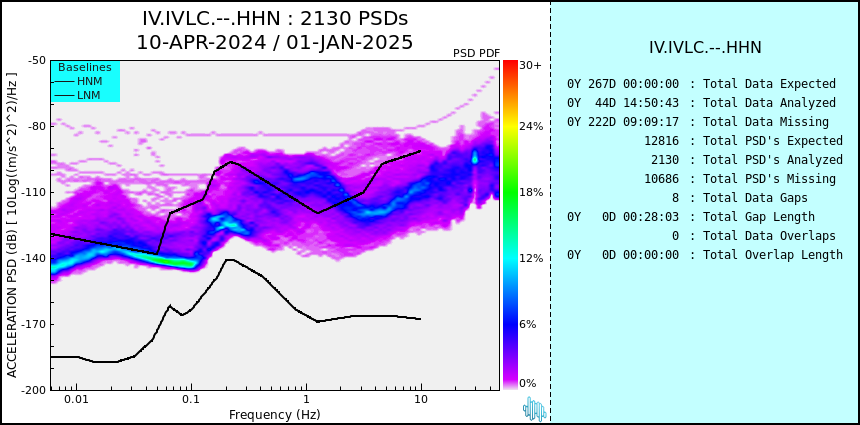

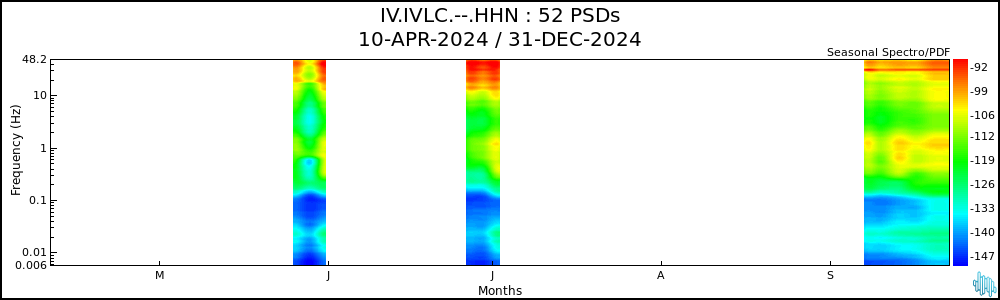

N HH Img Img 104

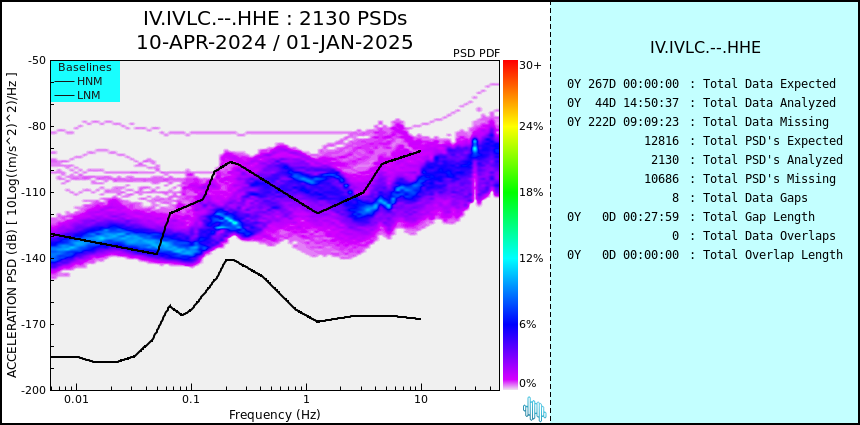

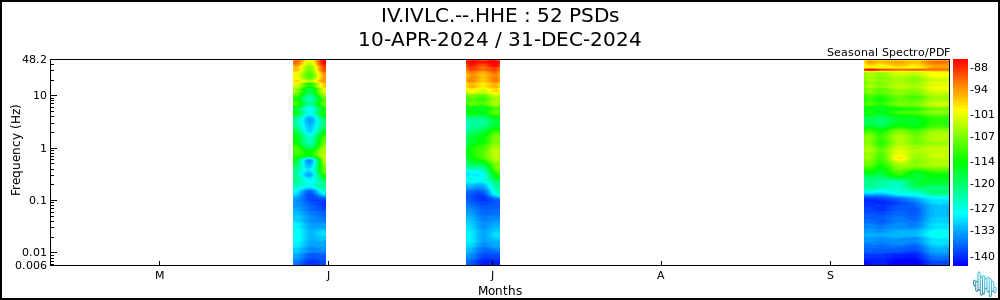

E HH Img Img 104

Geology

Stratigraphy
No Data Available
Geological Review
No Data Available
Morphological classification
No Data Available
Lithological Classification
No Data Available
Geological Classification
No Data Available
Fault Classification
No Data Available
Landslide Classification
No Data Available
Cross Section
Cartography Geological
Cross Section 		Latitude 1 [°] Longitude 1 [°] Latitude 2 [°] Longitude 2 [°] Spatial Ref Sys
Foglio ISOLA D'ISCHIA - NAPOLI - Carta Geologica d’Italia 1:100,000 Img 40.750883 13.902097 40.737949 13.896792 EPSG - 4326

Seismology

HVEQ
No Data Available
HVNoise
No Data Available
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
Id Type Investigation Pref. Latitude [°] Longitude [°] Elevation [m] Figure Monography
33 VELOCITY_PROFILE SA SA 40.7468 13.9014 166 Img Img

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 Yes Slope: 12.1°, Vs30: 867 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2025-11-27 20:27:00
Site Class
