Site IVUG

IVUG

Isola Vulcano Grillo

  • Id: 432
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 38.397
  • Longitude [°]: 14.9864
  • Elevation [m]: 418
  • StartTime: 13/04/2007 00:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Isola Vulcano Grillo
  • Site Name: IVUG
  • Station Name: IV.IVUG
  • Sensors: NANOMETRICS TRILLIUM-40S (m/s)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
No Data Available
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

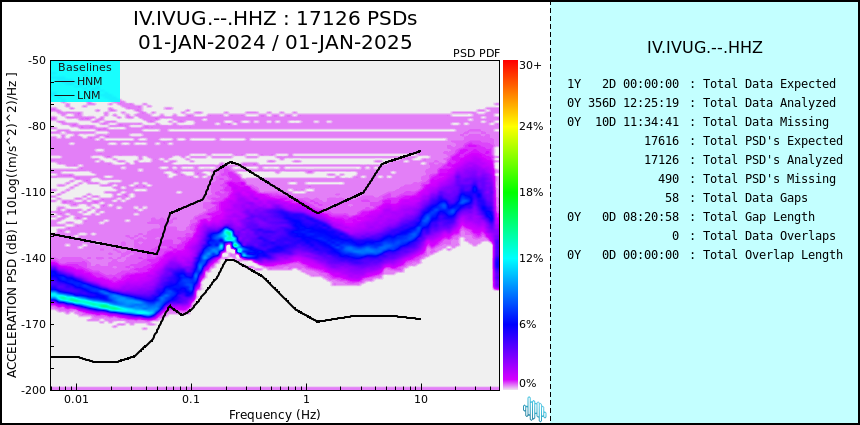

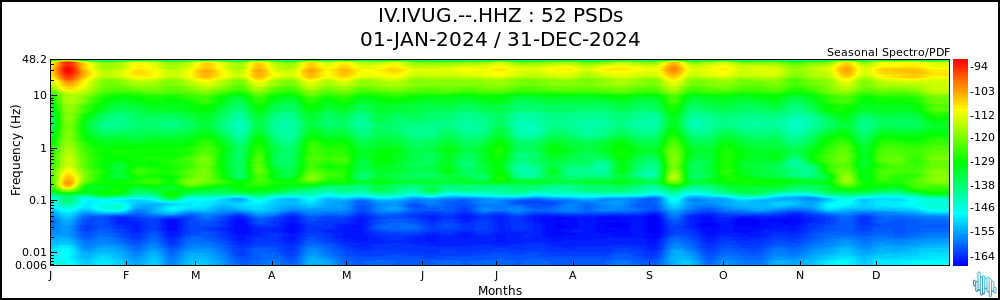

Z HH Img Img 104

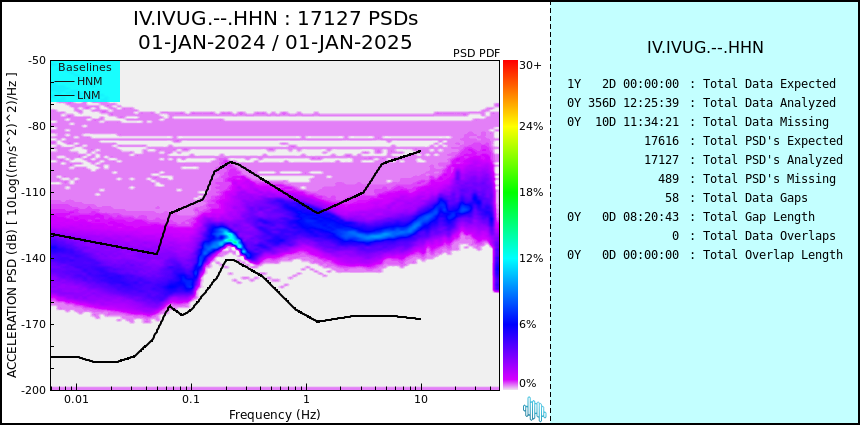

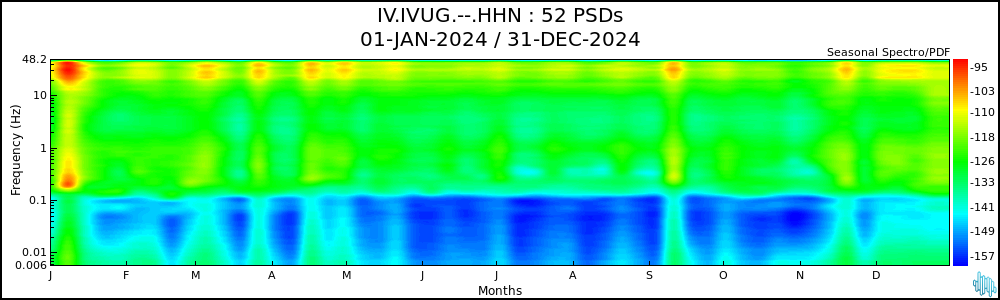

N HH Img Img 104

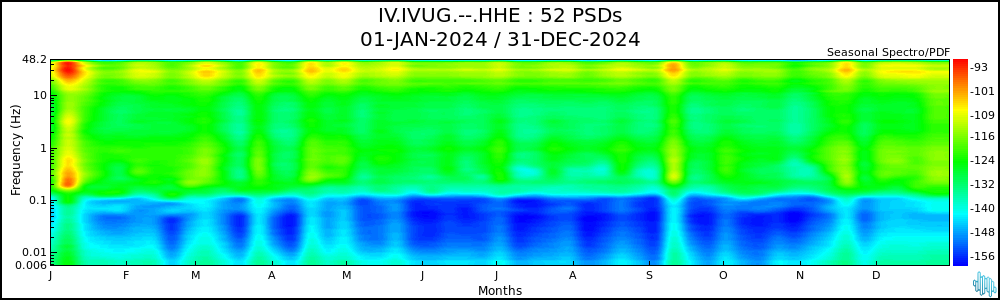

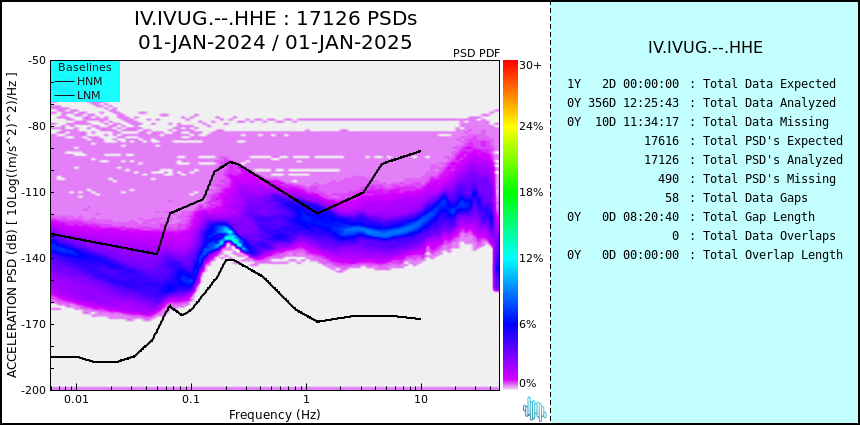

E HH Img Img 104

Geology

Stratigraphy
No Data Available
Geological Review
No Data Available
Morphological classification
No Data Available
Lithological Classification
No Data Available
Geological Classification
No Data Available
Fault Classification
No Data Available
Landslide Classification
No Data Available
Cross Section
No Data Available

Seismology

HVEQ
No Data Available
HVNoise
No Data Available
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
No Data Available

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T3 Yes Slope: 7.47°, Vs30: 729 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2025-11-27 20:32:38
Site Class
