Site CRTO

CRTO

Vesuvio Cratere Ovest, Napoli

  • Id: 390
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 40.821151
  • Longitude [°]: 14.422303
  • Elevation [m]: 1206
  • StartTime: 01/01/1988 00:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Vesuvio Cratere Ovest, Napoli
  • Site Name: CRTO
  • Station Name: IV.CRTO
  • Sensors: GURALP CMG-40T-60S (m/s)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
No Data Available
Data Quality
No Data Available

Geology

Stratigraphy
No Data Available
Geological Review
No Data Available
Morphological classification
No Data Available
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio NAPOLI INSPIRE D8 unconsolidated Ash tuff, lapillistone, and lapilli tuff scorie, lapilli, pomici, bombe 3
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio NAPOLI - Carta Geologica d’Italia 1:100,000 INSPIRE ceneri, lapilli e scorie di lancio con effusioni laviche intercalate: fase vesuvio-somma terrestrial_setting Holocene - Holocene compositional_layering pyroclastic_eruption
Fault Classification
No Data Available
Landslide Classification
Cartography code Distance [m] Activity
Italian Landslide Inventory (IFFI)
Cross Section
No Data Available

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HH Img 3 41

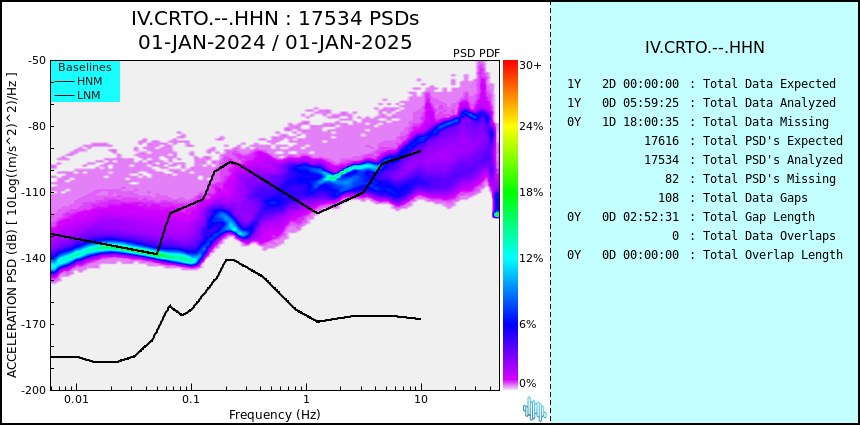

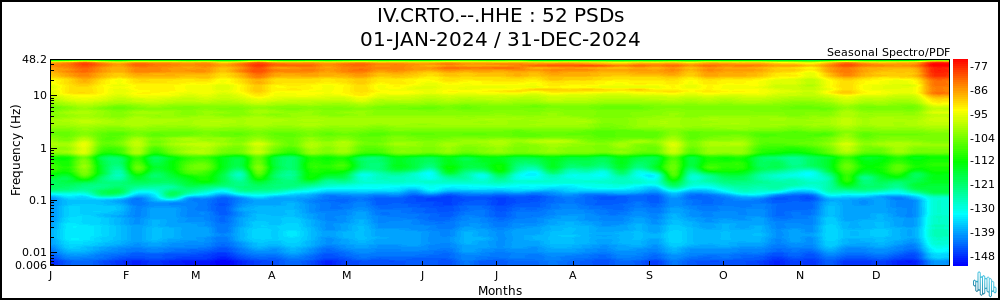

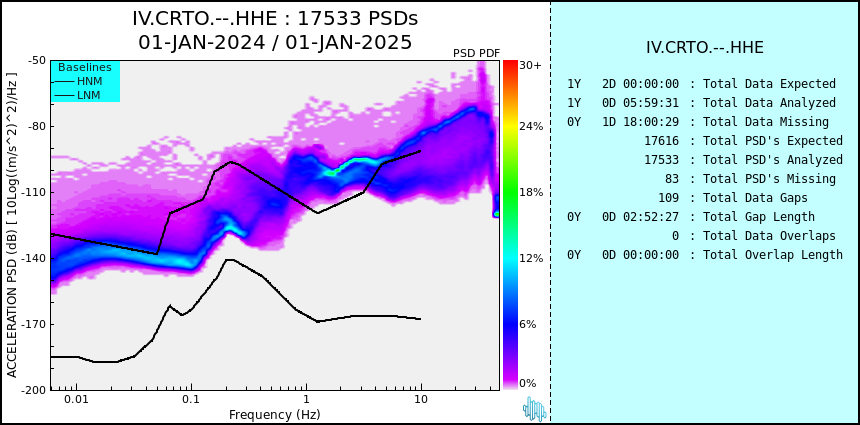

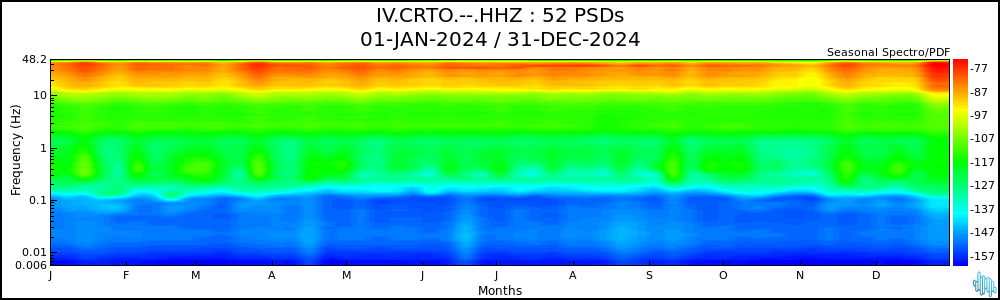

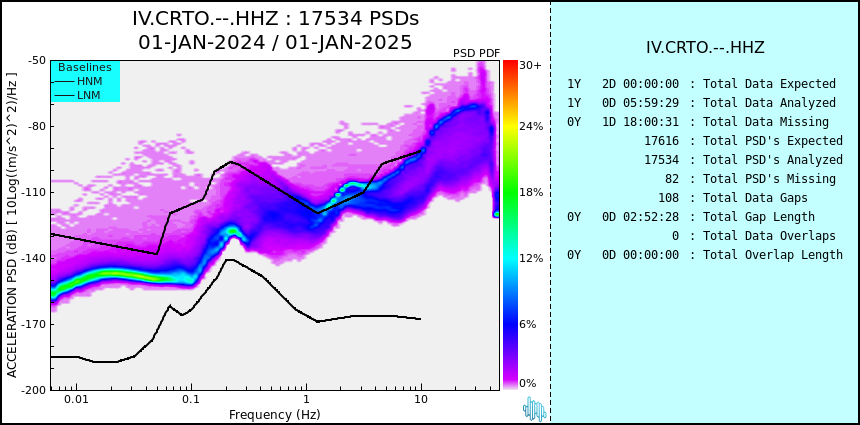

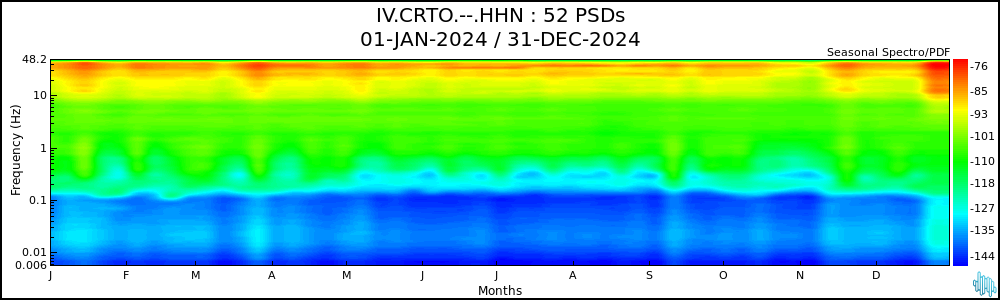

HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 01/01/2022 00:00:00 01/01/2023 00:00:00 RANDOM 0.1 15 HH Img 3
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
No Data Available

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T4 No Slope: 2.82°, Vs30: 487 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2024-01-11 08:15:57
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B Yes Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2024-01-11 08:18:51
GEOLOGY B No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2024-01-11 08:18:49
GEOLOGY B Yes Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2024-01-11 08:18:48
GEOLOGY C No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2024-01-11 08:18:46
