Site AIO

AIO

Antillo, Messina

  • Id: 372
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 37.9712
  • Longitude [°]: 15.233
  • Elevation [m]: 751
  • StartTime: 01/01/2000 00:00:00
  • EndTime: 30/05/2012 16:14:00
  • Type: PERMANENT
  • Description: Antillo, Messina
  • Site Name: AIO
  • Station Name: MN.AIO
  • Sensors: NANOMETRICS TRILLIUM-40S (m/s)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
No Data Available
Data Quality
No Data Available

Geology

Stratigraphy
No Data Available
Geological Review
No Data Available
Morphological classification
No Data Available
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio MONTE ETNA INSPIRE F1 consolidated Phyllite and schist filladi, anfiboliti, argilloscisti, micascisti, parascisti, quarziti scistose, calcescisti, talcoscisti 3
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio MONTE ETNA - Carta Geologica d’Italia 1:100,000 INSPIRE scisti neri e verdastri earth_interior_setting Cambrian - Silurian schistosity metamorphic_process
Fault Classification
No Data Available
Landslide Classification
Cartography code Distance [m] Activity
Italian Landslide Inventory (IFFI)
Cross Section
No Data Available

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HH Img 2 128

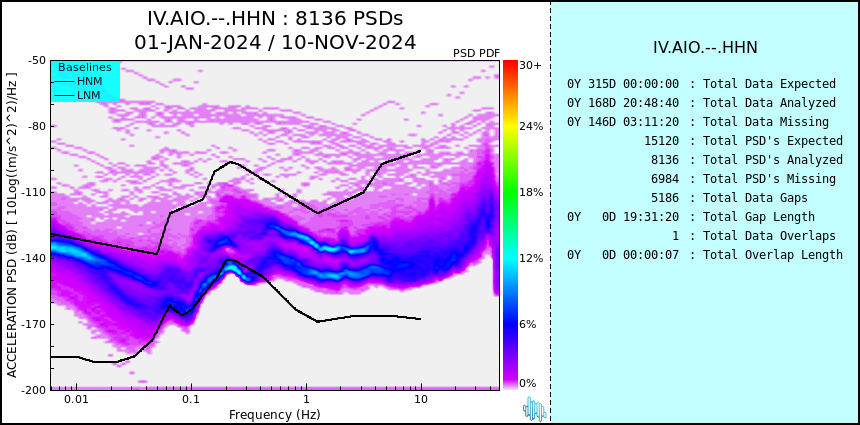

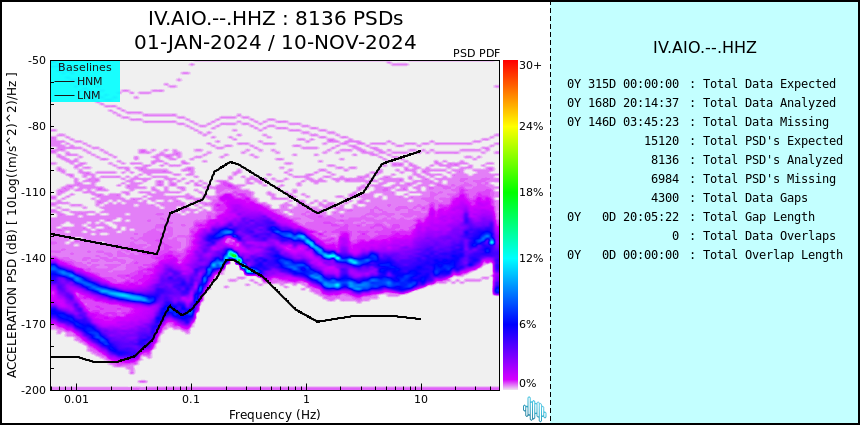

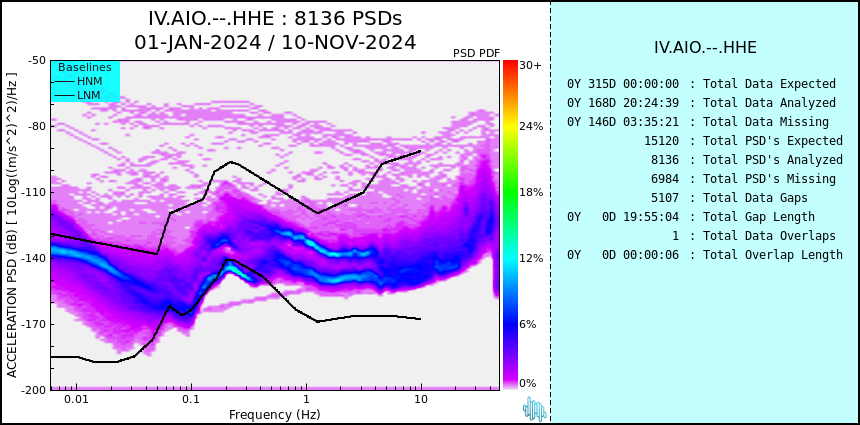

HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 01/01/2022 00:00:00 01/01/2000 00:00:00 0.1 15 HH Img 1
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
No Data Available

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T4 Yes Slope: 19.74°, Vs30: 1076 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2023-08-17 13:22:19
Site Class
