Site EVRN

EVRN

Santa Venerina, Etna (CT)

  • Id: 346
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 37.6892
  • Longitude [°]: 15.1356
  • Elevation [m]: 421
  • StartTime: 20/01/2010 10:36:00
  • EndTime:
  • Type: PERMANENT
  • Description: Santa Venerina, Etna (CT)
  • Site Name: EVRN
  • Station Name: IV.EVRN
  • Sensors: LENNARTZ LE3D-20S (m/s); KINEMETRICS EPISENSOR (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img Img PILLAR ABSENT VAULT There is no isolation leaning against the sensors but they are allocated in a buried compartment built inside the vault (see scheme in fig."SITE") and well isolated from the outside 2
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

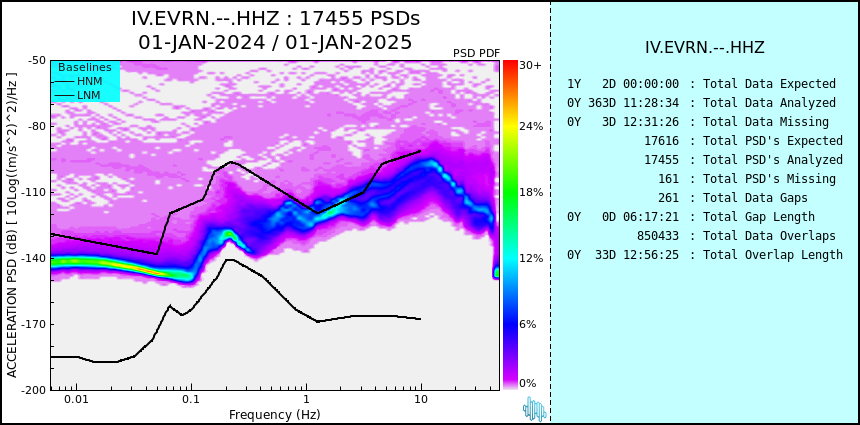

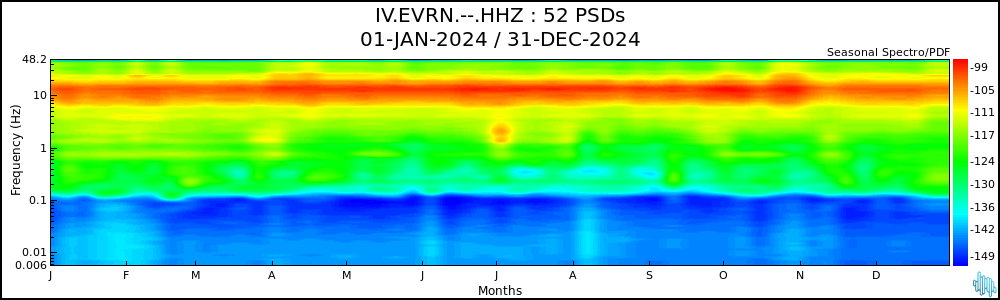

Z HN Img 59

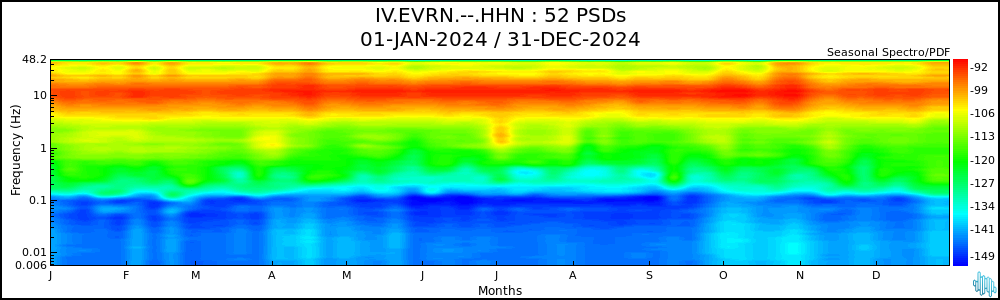

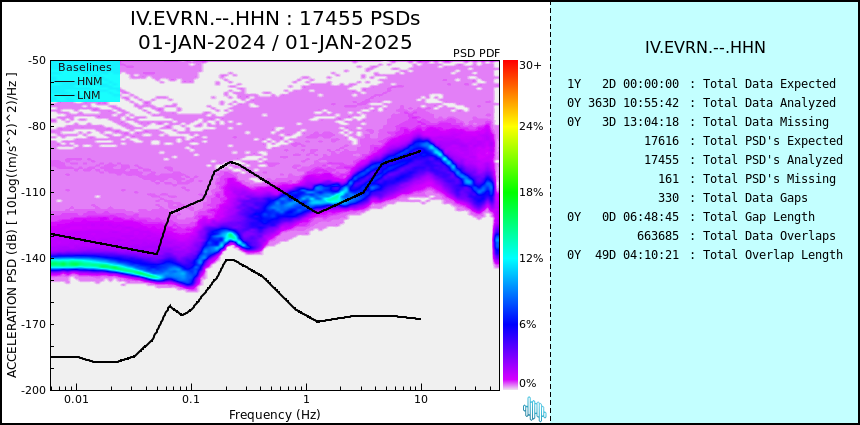

N HN Img 59

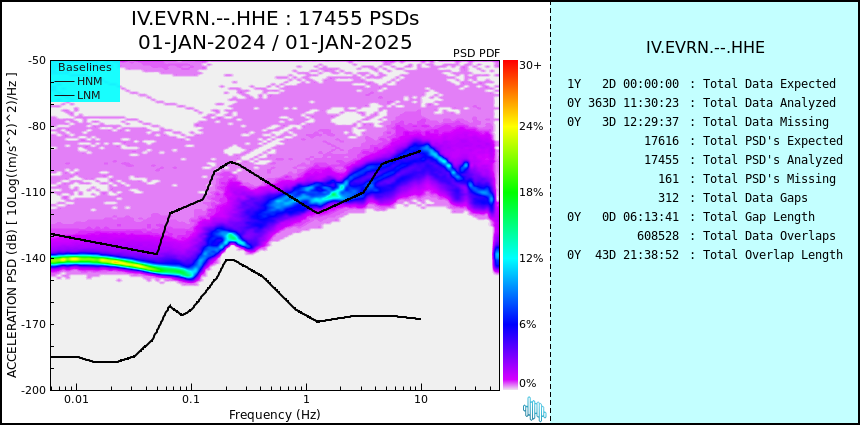

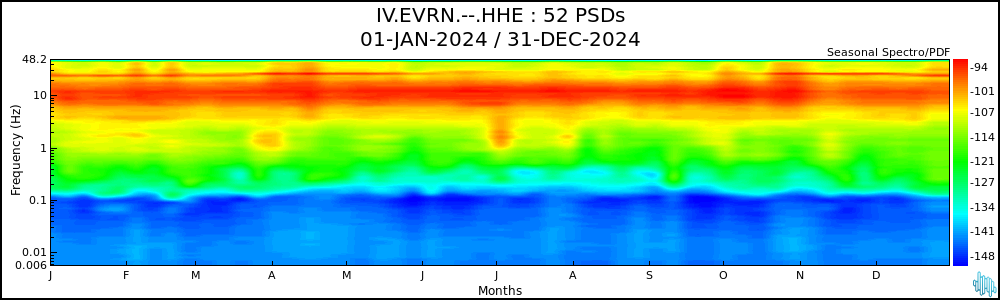

E HN Img 59

Geology

Stratigraphy
No Data Available
Geological Review
No Data Available
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
Yes BASIN 10.00000 ANGLE_LE15 5.49000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio CATANIA ISPRA 2010 D2 consolidated Intermediate composition igneous material trachiti; andesiti; trachiandesiti; latiti; trachiandesiti basaltiche; andesiti basaltiche; 2
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio CATANIA INSPIRE lave di epoca ignota non delimitate volcanic_arc_setting Holocene - Holocene lava_flow_banding effusive_eruption
Fault Classification
No Data Available
Landslide Classification
No Data Available
Cross Section
No Data Available

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HN Img 2 59
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 15/03/2015 00:00:00 15/03/2015 23:59:59 NONE 0.1 15 EH Img Img 2
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
No Data Available

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 Yes Slope: 4.27°, Vs30: 554 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2023-02-03 13:15:28
DEM NC No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-08 14:43:56
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B Yes Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-29 08:50:40
GEOLOGY E Yes Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2024-02-12 11:19:01
GEOLOGY B No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
GEOLOGY A No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2023-01-26 10:39:32
