Site APRC

APRC

Apricena (FG)

  • Id: 345
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 41.75738
  • Longitude [°]: 15.54308
  • Elevation [m]: 672
  • StartTime: 21/01/2016 13:39:26
  • EndTime:
  • Type: PERMANENT
  • Description: Apricena (FG)
  • Site Name: APRC
  • Station Name: IV.APRC
  • Sensors: NANOMETRICS TRILLIUM-120C (m/s); KINEMETRICS EPISENSOR-FBA-ES-T-CL-2G-FS-40-VPP (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img Img PILLAR ABSENT BOX Sensors housed in a brickwork (1.50x150x2.00 m) 2
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

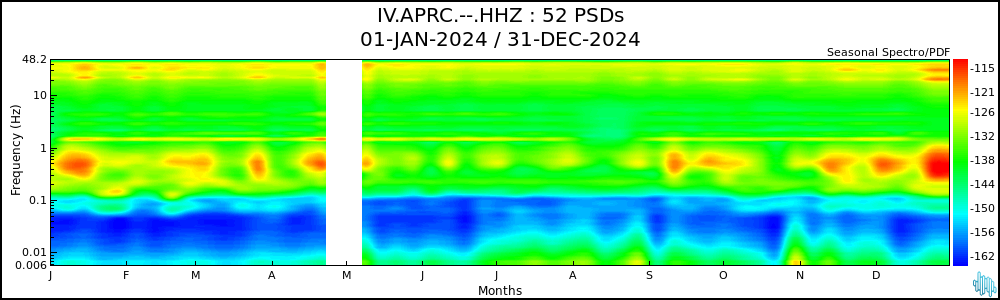

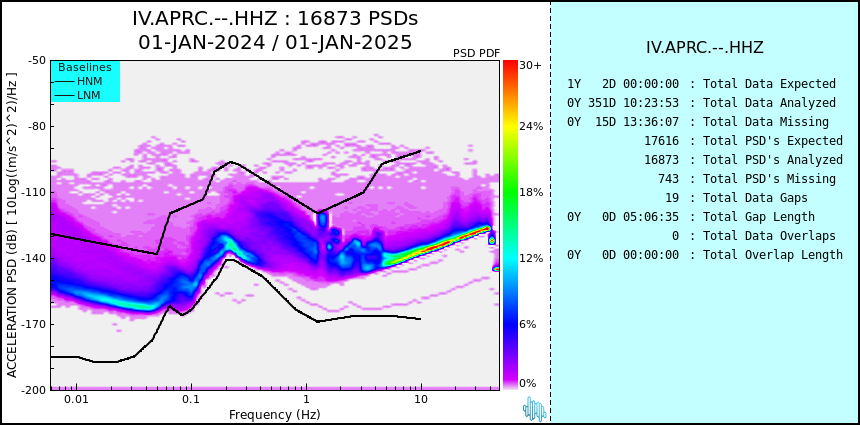

Z HH Img 100

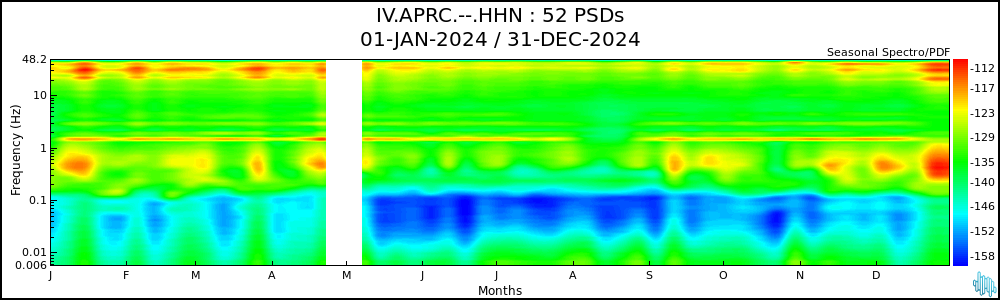

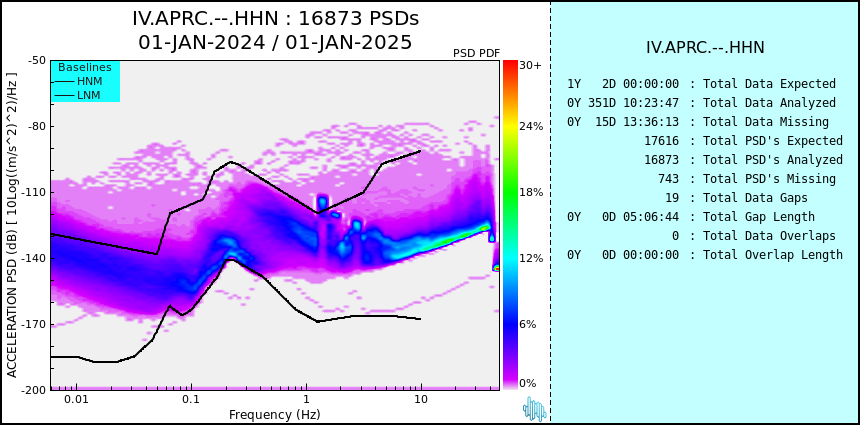

N HH Img 100

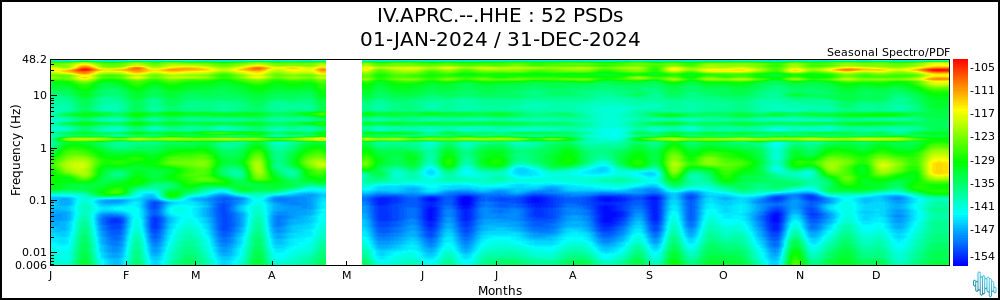

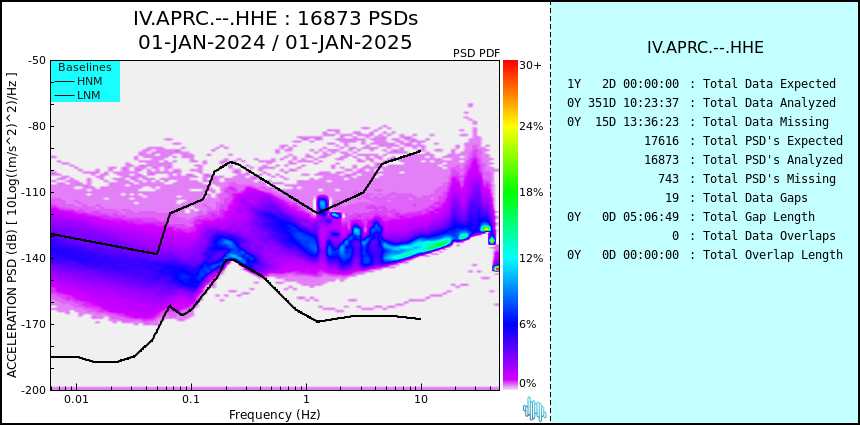

E HH Img 100

Geology

Stratigraphy
No Data Available
Geological Review
No Data Available
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
Yes RELIEF 10.00000 ANGLE_LE15 9.65000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio S.MARCO IN LAMIS ISPRA 2010 A1 well_indurated Limestone calcilutiti, calcareniti,calciruditi; calcari dolomitici, calcari selciferi, 3
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio S.MARCO IN LAMIS INSPIRE formazione di monte la serra marine_setting Kimmeridgian - Upper Jurassic parallel_bedding deposition_from_water
Fault Classification
No Data Available
Landslide Classification
No Data Available
Cross Section
No Data Available

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HH Img 0 76
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 01/01/2011 00:00:00 08/10/2021 00:00:00 DAYTIME, SEASONAL 0.1 15 HH Img 2
No 12/11/2017 00:00:00 12/11/2017 06:00:00 RANDOM 0.1 15 HH Img Img 0
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
No Data Available

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 Yes Slope: 2.53 °, Vs30: 466 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2024-01-27 09:48:24
DEM T1 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-01-27 09:48:25
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B Yes Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-29 08:50:23
GEOLOGY A No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
GEOLOGY A No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-14 14:52:19
