Site IOCA

IOCA

Ischia - Osservatorio Casamicciola

  • Id: 344
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 40.7468
  • Longitude [°]: 13.9014
  • Elevation [m]: 166
  • StartTime: 09/02/2011 00:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Ischia - Osservatorio Casamicciola
  • Site Name: IOCA
  • Station Name: IV.IOCA
  • Sensors: NANOMETRICS TRILLIUM-120S (m/s); NANOMETRICS TITAN (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img Img GROUND ABSENT BUILDING 3
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

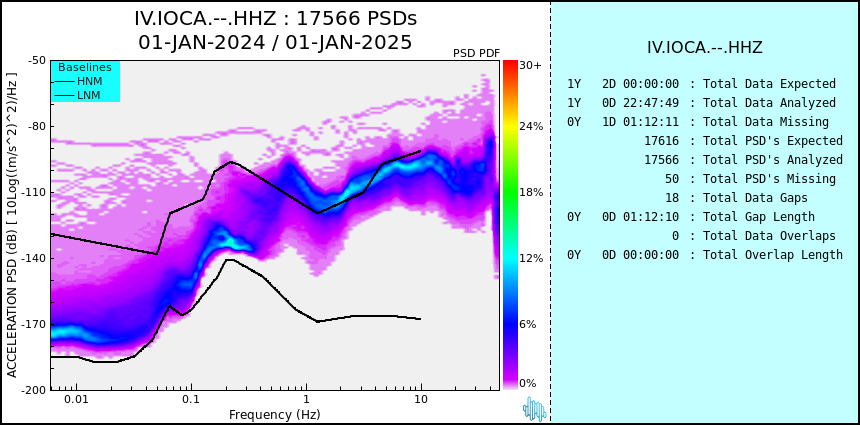

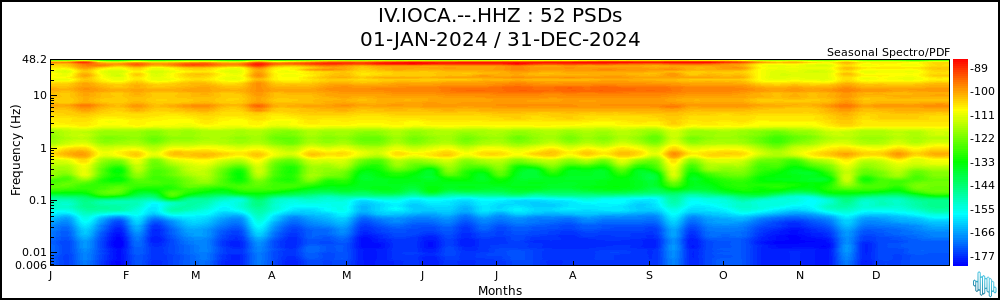

Z Img Img 100

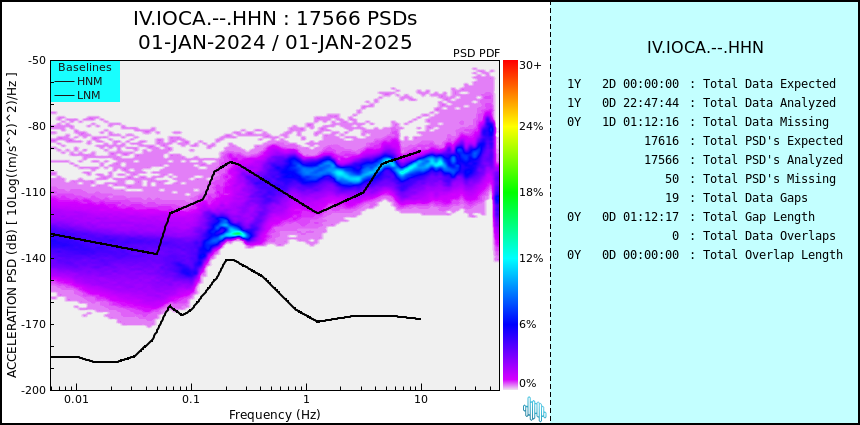

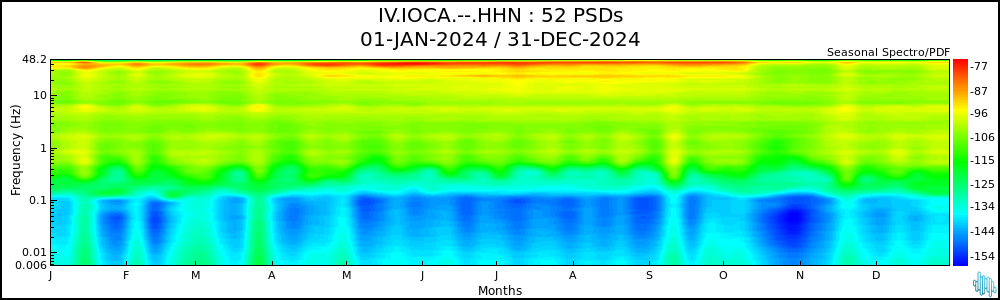

N Img Img 100

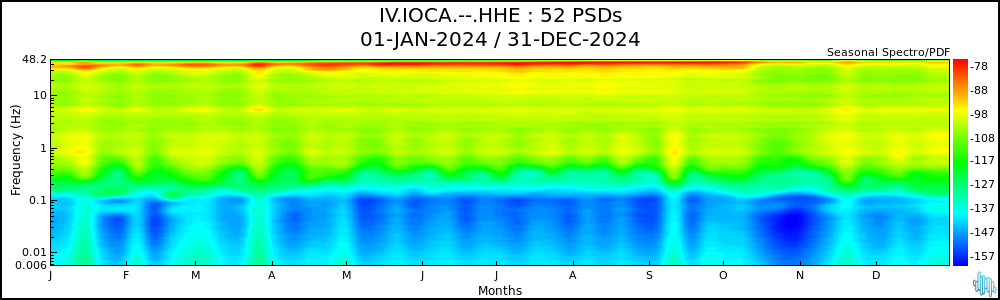

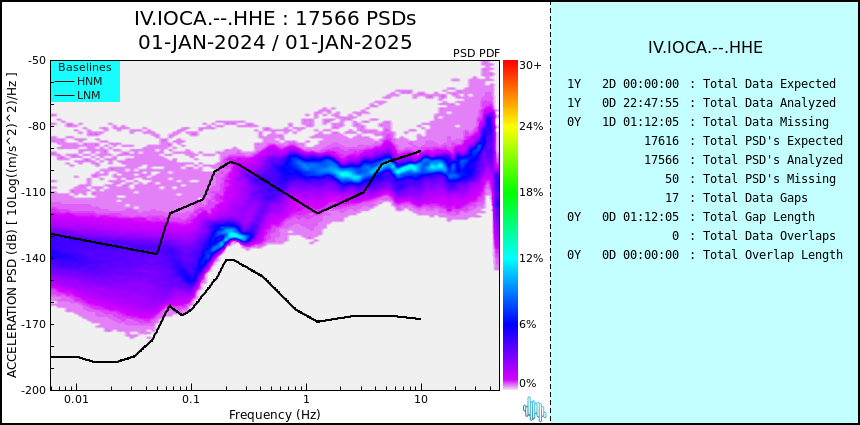

E Img Img 100

Geology

Stratigraphy
No Data Available
Geological Review
Preferred Bibliography Monography Conceptual Model Value
Yes Famiani D. , Di Naccio D., Bordoni P., Geological report at the seismic stations IV.IOCA and IT.CML-Casamicciola Terme (NA), Working group INGV "Agreement DPC-INGV 2018, Allegato B2, Obiettivo 1 - TASK B” (2018)
download 0
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
Yes BASIN 10.00000 ANGLE_LE15 0.58000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio ISOLA D'ISCHIA - NAPOLI ISPRA 2010 D5 consolidated Pyroclastic material (pyroclast, tuff, ignimbrite) piroclastiti , tufi, ignimbriti 1
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio ISOLA d'ISCHIA - NAPOLI INSPIRE tufo trachitico terrestrial_setting Pleistocene - Pleistocene compositional_layering pyroclastic_eruption
Fault Classification
No Data Available
Landslide Classification
Cartography code Distance [m] Activity
Italian Landslide Inventory (IFFI) 466 ACTIVE
Cross Section
Cartography Geological
Cross Section 		Latitude 1 [°] Longitude 1 [°] Latitude 2 [°] Longitude 2 [°] Spatial Ref Sys
Foglio ISOLA D'ISCHIA - NAPOLI - Carta Geologica d’Italia 1:100,000 Img 40.750883 13.902097 40.737949 13.896792 GCS_WGS_1984

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HH Img 1 27
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 01/01/2016 00:00:00 10/09/2021 00:00:00 SEASONAL 0.1 15 HH Img 2
No 18/10/2016 00:00:00 18/10/2016 06:00:00 NONE 0.1 15 HH Img Img 2
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
Id Type Investigation Pref. Latitude [°] Longitude [°] Elevation [m] Figure Monography
33 VELOCITY_PROFILE SA YES 40.7468 13.9014 166 Img Img

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 No Slope: 10.06°, Vs30: 814 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2024-02-19 12:31:07
DEM T1 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-19 12:31:06
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B No Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-18 08:26:15
GEOLOGY B No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:56
GEOLOGY B No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
ARRAY_MEASUREMENT C Yes Vs30=344 m/s EC8 Vassallo M., Milana G., Di Giulio G., Bordoni P., Cogliano R., Fodarella A., Pucillo S., Riccio G., Velocity profile report at the seismic stations IV.IOCA and IT.CML-Casamicciola Terme, Ischia, Working group INGV "Agreement DPC-INGV 2018, Allegato B2, Obiettivo 1 - TASK B” (2018)
2022-02-15 14:24:22
ARRAY_MEASUREMENT C Yes Vseq =344 m/s NTC18 Vassallo M., Milana G., Di Giulio G., Bordoni P., Cogliano R., Fodarella A., Pucillo S., Riccio G., Velocity profile report at the seismic stations IV.IOCA and IT.CML-Casamicciola Terme, Ischia, Working group INGV "Agreement DPC-INGV 2018, Allegato B2, Obiettivo 1 - TASK B” (2018)
2022-02-15 14:24:21
GEOLOGY B No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-15 14:24:19
