Site ZOVE

ZOVE

Zovencedo, Vicenza

  • Id: 336
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 45.45352
  • Longitude [°]: 11.487565
  • Elevation [m]: 382
  • StartTime: 07/09/2011 17:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Zovencedo, Vicenza
  • Site Name: ZOVE
  • Station Name: IV.ZOVE
  • Sensors: Lunitek Tellus_5s (m/s); Lunitek LK307 (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
No Data Available
Data Quality

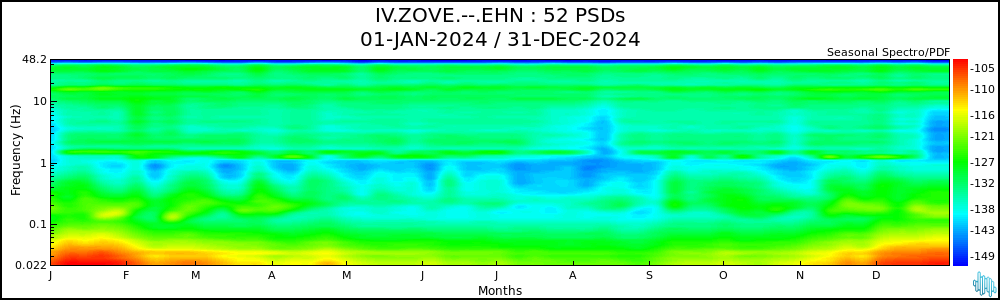

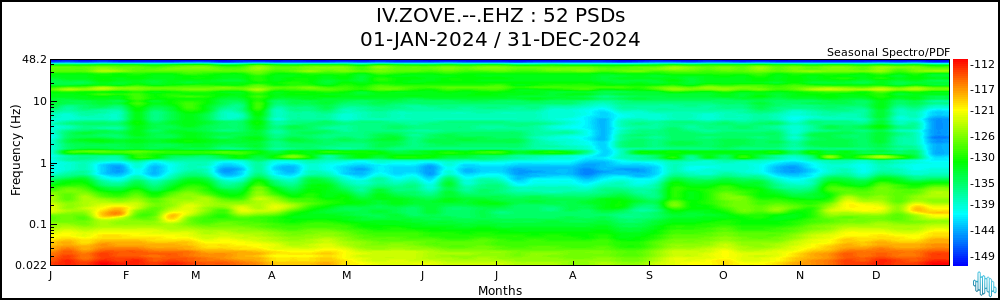

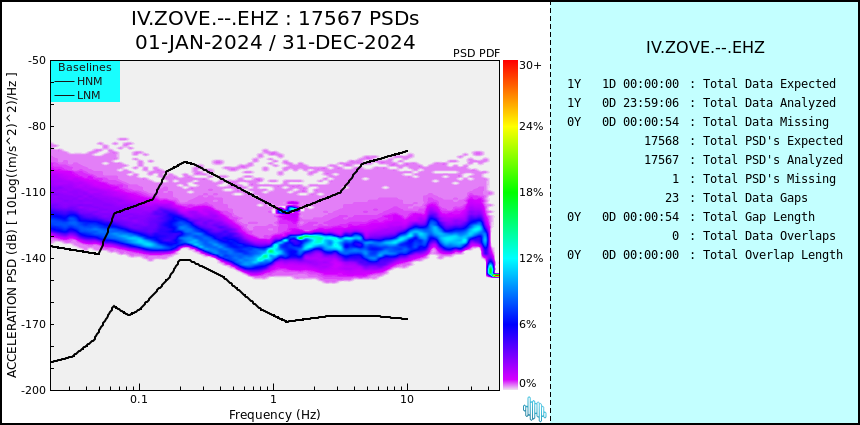

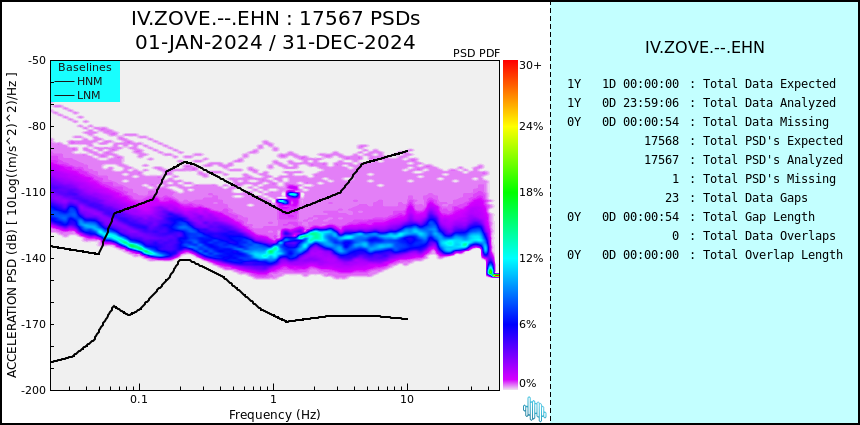

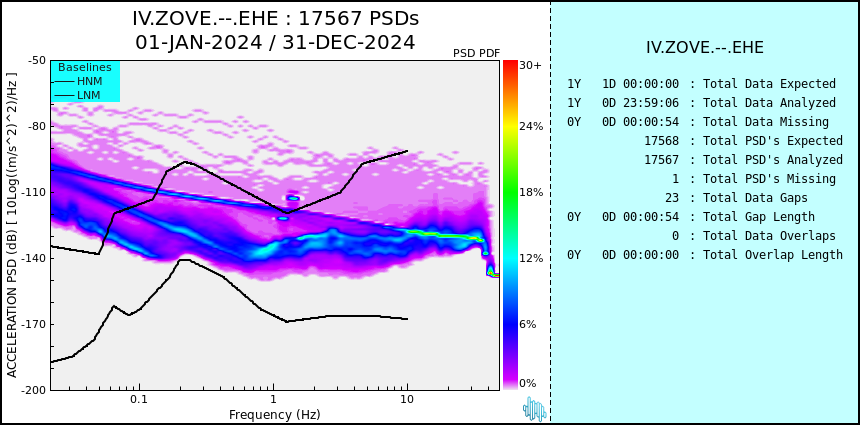

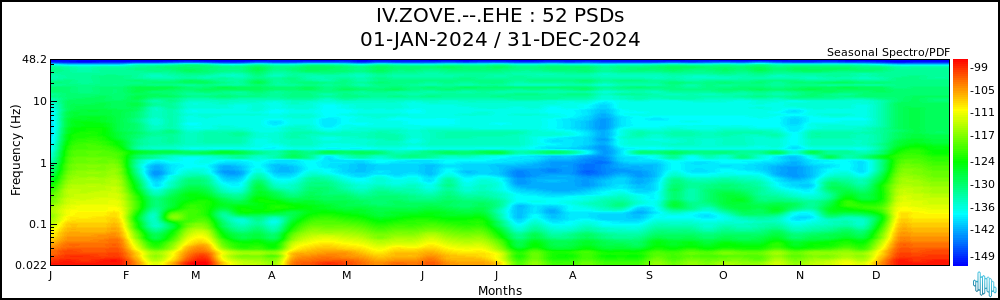

Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values
E HN Img Img 60
N HN Img Img 60
Z HN Img Img 60

Geology

Stratigraphy
Site name Reference System Latitude [°] Longitude [°] Drilling ID Depth [m] Elevation [m] Source Site Distance [m] Drilling Date
ZOVE GCS_WGS_1984 45.4411 11.4825 158627 342 water well 1446
ZOVE GCS_WGS_1984 45.4397 11.4772 190613 260 water well 1736
ZOVE GCS_WGS_1984 45.4554 11.4664 157724 104 water well 1659
ZOVE GCS_WGS_1984 45.4628 11.4794 157720 150 water well 1067
Geological Review
Preferred Bibliography Monography Conceptual Model Value
Yes Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 4
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
No RELIEF 30.00000 ANGLE_LE15 11.39000 Img
Yes RELIEF 10.00000 ANGLE_LE15 6.80000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio PADOVA ISPRA 2010 A11 consolidated Limestone-sandstone alternance complesso calcareo (dolomitico) - arenaceo, calcareo (dolomitico)-marnoso-arenaceo 3
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio PADOVA INSPIRE calcari dolomitici a coralli marine_setting Oligocene - Oligocene parallel_bedding deposition_from_water
Fault Classification
No Data Available
Landslide Classification
Cartography code Distance [m] Activity
Italian Landslide Inventory (IFFI)
Cross Section
No Data Available

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HN Img 1 235
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 01/01/2023 00:00:00 31/12/2023 00:00:00 RANDOM 0.1 15 EH Img 0
No 18/12/2014 10:16:03 18/12/2014 10:50:24 0.1 15 EH Img Img 0
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
No Data Available

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 No Slope: 16.69°, Vs30: 990 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2024-02-22 21:28:48
DEM T1 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-22 21:28:47
DEM T1 No dem_30m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-09 22:15:19
OTHER T2 No GoogleEarth EC8 2022-03-15 12:45:14
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B Yes Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-29 08:48:56
GEOLOGY A Yes Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-08-09 13:26:07
GEOLOGY A No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
GEOLOGY B No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-14 14:26:52
