Site VOBA

VOBA

Vobarno, Brescia

  • Id: 330
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 45.642946
  • Longitude [°]: 10.503535
  • Elevation [m]: 240
  • StartTime: 08/04/2011 17:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Vobarno, Brescia
  • Site Name: VOBA
  • Station Name: IV.VOBA
  • Sensors: Lunitek Tellus_5s (m/s); Lunitek LK307 (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img Img FLOOR ABSENT BUILDING The station is placed in the school. Only accelerometer is present. 1
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

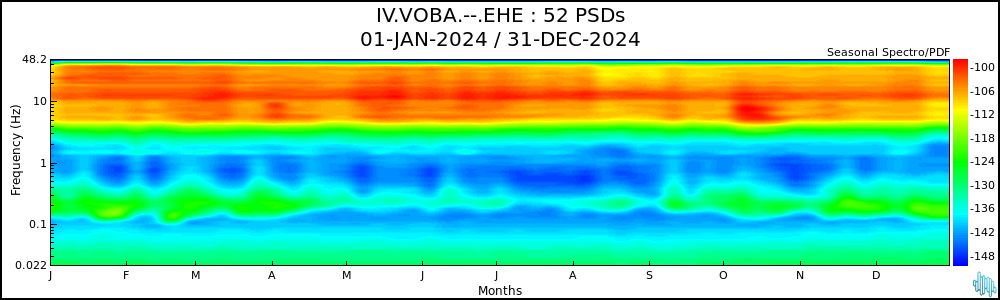

E HN Img Img 60

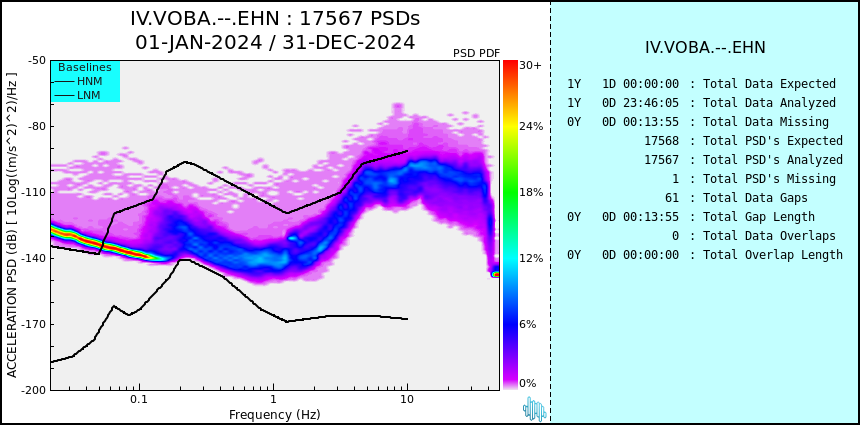

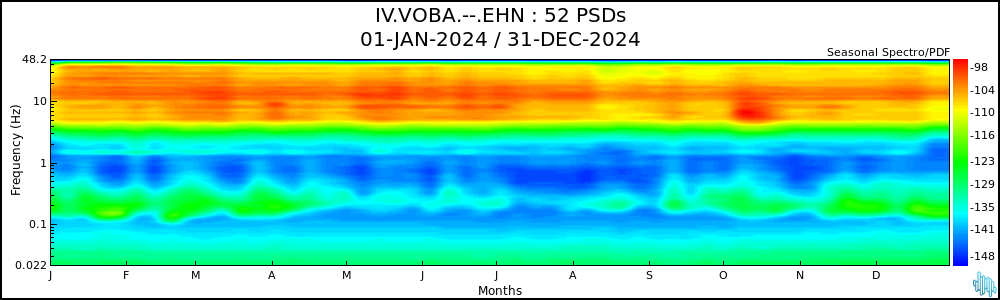

N HN Img Img 60

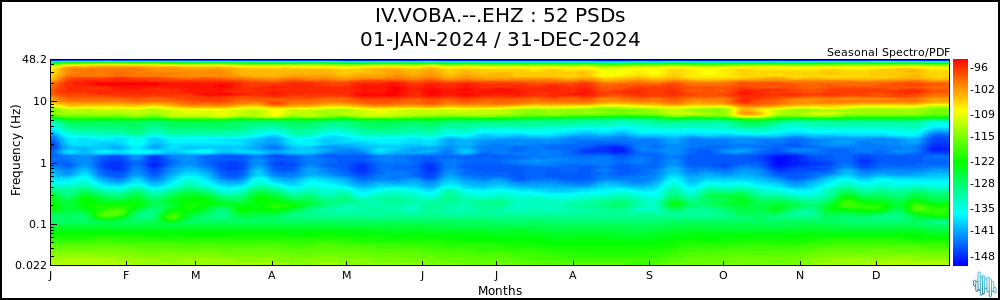

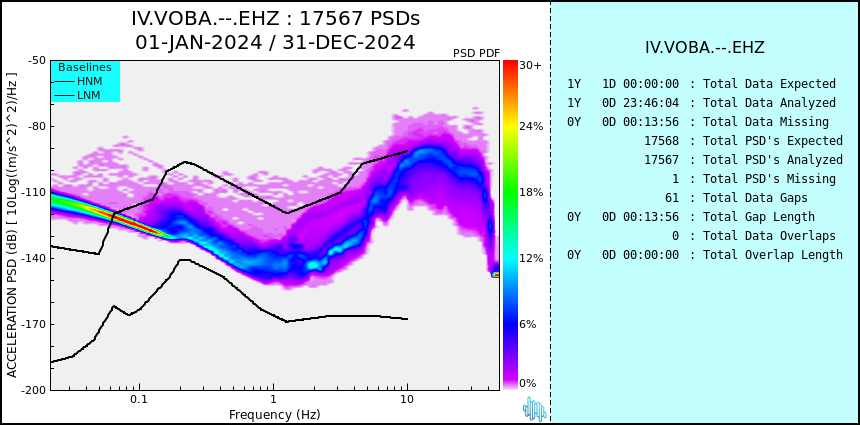

Z HN Img Img 60

Geology

Stratigraphy
No Data Available
Geological Review
Preferred Bibliography Monography Conceptual Model Value
Yes Lovati C., Mascandola C., Massa M., Geological report at the seismic station IV.VOBA - Vobarno, Working group INGV "Agreement DPC-INGV 2019-21, All.B2- WP1, Task 2” (2019)
download 0
No Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 2
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
No BASIN 30.00000 ANGLE_LE15 0.68000 Img
Yes BASIN 10.00000 ANGLE_LE15 0.00000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio PESCHIERA DEL GARDA ISPRA 2010 B3 unconsolidated Sand-gravel terreni a granulometria grossolana (g), media-grossolana (m+g) 1
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio PESCHIERA DEL GARDA INSPIRE alluvioni sabbioso-ghiaiose alluvial_plain_setting Holocene - Holocene sedimentary_layering deposition_from_moving_fluid
Fault Classification
No Data Available
Landslide Classification
Cartography code Distance [m] Activity
Italian Landslide Inventory (IFFI) 472 QUIESCENT
Cross Section
Cartography Geological
Cross Section 		Latitude 1 [°] Longitude 1 [°] Latitude 2 [°] Longitude 2 [°] Spatial Ref Sys
Foglio PESCHIERA DEL GARDA - Carta Geologica d’Italia 1:100,000 Img 45.6419 10.49935 45.6435 10.5072 GCS_WGS_1984

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HN Img 2 52
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 01/01/2023 00:00:00 31/12/2023 23:59:00 RANDOM 0.1 15 EH Img 1
No 12/12/2014 11:06:50 12/12/2014 12:00:00 0.1 15 EH Img Img 1
SSREQ
No Data Available
Signal Polarization
Preferred Type Start time End time Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture ellipticity Picture dip Picture strike Number of peaks Number of earthquake
Yes Noise 12/12/2014 11:06:50 12/12/2014 12:00:00 0.1 15 EH Img Img Img 1 0

Geophysics

Subsoil Model
Id Type Investigation Pref. Latitude [°] Longitude [°] Elevation [m] Figure Monography
37 VELOCITY_PROFILE SA YES 45.642946 10.503535 240 Img Img

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 No Slope: 1.55°, Vs30: 397 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2024-02-23 15:54:40
DEM T1 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-23 15:54:39
DEM NC No dem_30m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-10 11:53:45
OTHER T1 No GoogleEarth EC8 2022-02-10 11:53:59
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B No Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-18 08:26:15
GEOLOGY A No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:56
GEOLOGY A No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
GEOLOGY C No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-14 15:06:42
ARRAY_MEASUREMENT E Yes Vseq=332 m/s NTC18 Mascandola C., Lovati S., Massa M., Velocity profile report at the seismic station IV.VOBA– Vobarno, Working group INGV "Agreement DPC-INGV 2019-21, All.B2- WP1, Task 2” (2019)
2022-02-14 15:06:44
ARRAY_MEASUREMENT B No Vs30=375 m/s EC8 Mascandola C., Lovati S., Massa M., Velocity profile report at the seismic station IV.VOBA– Vobarno, Working group INGV "Agreement DPC-INGV 2019-21, All.B2- WP1, Task 2” (2019)
2022-02-14 15:06:44
