Site SENI

SENI

Senigallia, Ancona

  • Id: 284
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 43.7052
  • Longitude [°]: 13.2331
  • Elevation [m]: 10
  • StartTime: 26/02/2008 10:38:00
  • EndTime:
  • Type: PERMANENT
  • Description: Senigallia, Ancona
  • Site Name: SENI
  • Station Name: IV.SENI
  • Sensors: LENNARTZ LE3D-1S (m/s); KINEMETRICS EPISENSOR (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img Img PILLAR ABSENT BUILDING DOWNHOLE velocimeter in the same site 0
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

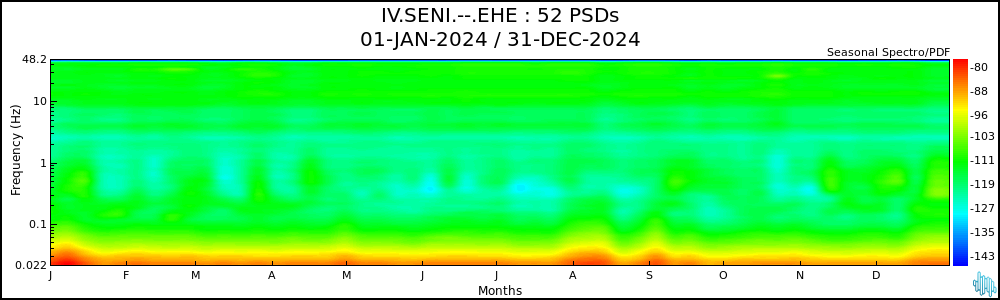

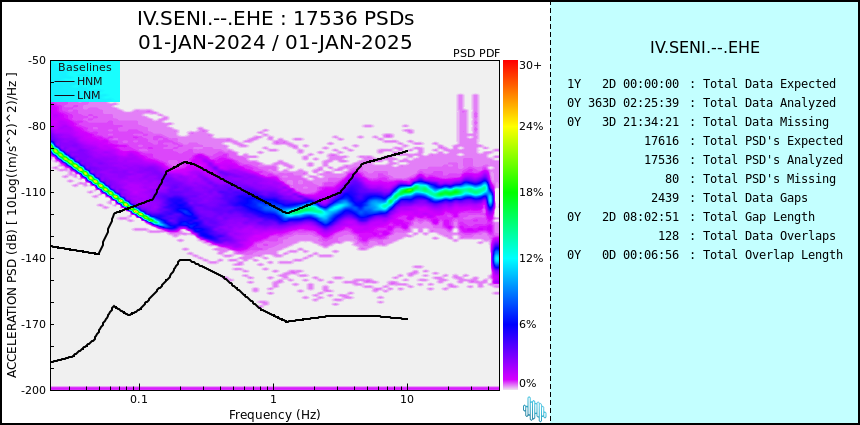

E EH Img Img 97

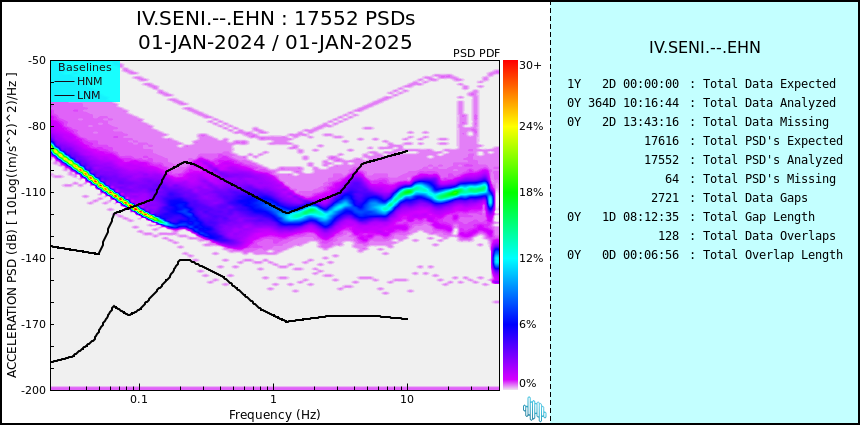

N EH Img Img 97

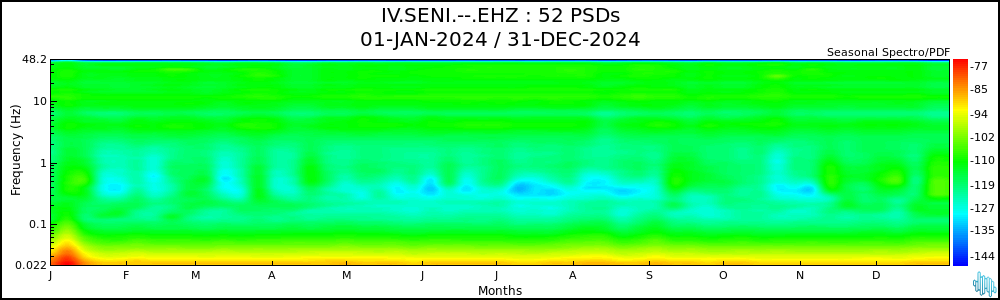

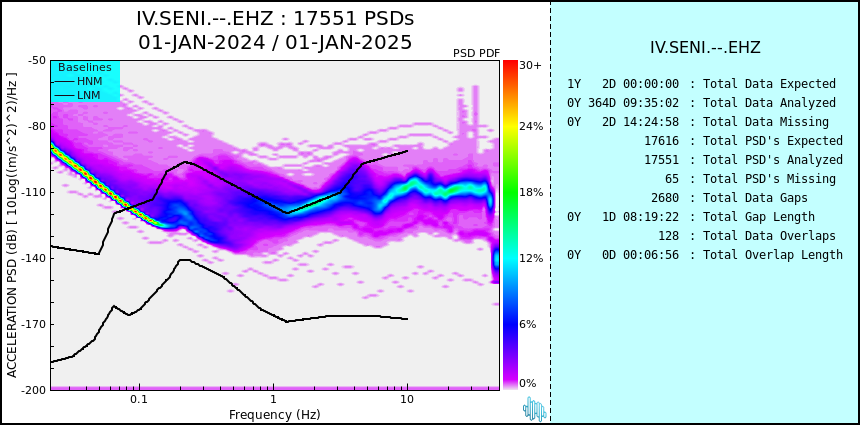

Z EH Img Img 97

Geology

Stratigraphy
No Data Available
Geological Review
Preferred Bibliography Monography Conceptual Model Value
Yes Ladina C. , Famiani D. , Geological report at the seismic station IV.SENI-Senigallia (AN), Working group INGV "Agreement DPC-INGV 2018, Allegato B2, Obiettivo 1 - TASK B”, (2018) (2018)
download 0
No Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 2
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
No BASIN 30.00000 ANGLE_LE15 1.15000 Img
Yes BASIN 10.00000 ANGLE_LE15 0.00000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio SENIGALLIA ISPRA 2010 B4 unconsolidated Mixed clay-sand-gravel terreni a granulometria mista (f+m+g) 3
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio SENIGALLIA INSPIRE alluvioni e depositi litoranei alluvial_plain_setting Pleistocene - Pleistocene sedimentary_layering deposition_from_moving_fluid
Fault Classification
No Data Available
Landslide Classification
Cartography code Distance [m] Activity
Italian Landslide Inventory (IFFI) 218 ACTIVE
Cross Section
Cartography Geological
Cross Section 		Latitude 1 [°] Longitude 1 [°] Latitude 2 [°] Longitude 2 [°] Spatial Ref Sys
Foglio SENIGALLIA - Carta Geologica d’Italia 1:50,000 Img 43.70877 13.22818 43.69857 13.24506 GCS_WGS_1984

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 EH Img 3 84
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 13/03/2014 00:00:00 13/03/2014 23:59:59 NONE 1 15 EH Img Img 0
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
Id Type Investigation Pref. Latitude [°] Longitude [°] Elevation [m] Figure Monography
22 VELOCITY_PROFILE CH YES 43.7052 13.2331 10 Img Img
27 NON_LINEAR_CURVE 43.7052 13.2331 10 Img

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 No Slope: 0.27°, Vs30: 278 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2024-02-22 21:06:21
DEM T1 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-22 21:06:16
DEM T1 No dem_30m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-10 10:33:00
OTHER T1 No GoogleEarth EC8 2022-02-10 10:33:14
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY C No Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-18 08:26:15
GEOLOGY C No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:56
GEOLOGY C No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
GEOLOGY C No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-15 09:12:20
CROSSHOLE C Yes vs30=242 m/s EC8 Mucciarelli M., Tiberi P., Scenari di pericolosità sismica della fascia costiera marchigiana. La Microzonazione sismica di Senigallia, (2007)
2023-08-10 09:47:14
