Site SANR

SANR

Sandrigo, Vicenza

  • Id: 278
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 45.639971
  • Longitude [°]: 11.609983
  • Elevation [m]: 52
  • StartTime: 23/01/2012 14:30:00
  • EndTime: 01/01/2099 00:00:00
  • Type: PERMANENT
  • Description: Sandrigo, Vicenza
  • Site Name: SANR
  • Station Name: IV.SANR
  • Sensors:
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img FLOOR MEDIUM FREE FIELD The sensor (Episensor accelerometer ) is located in a cultivated field anchored on a concrete plate (10 cm thick), and covered by a case of cement, located close to a black box with seismic station, trasmission system and battery 3
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

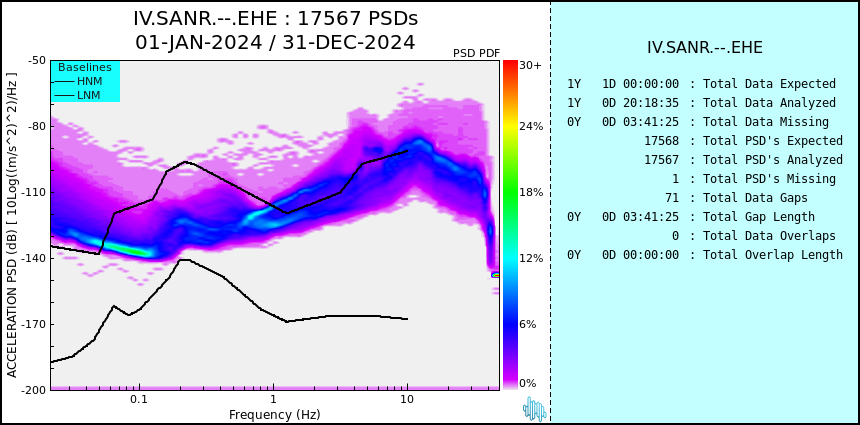

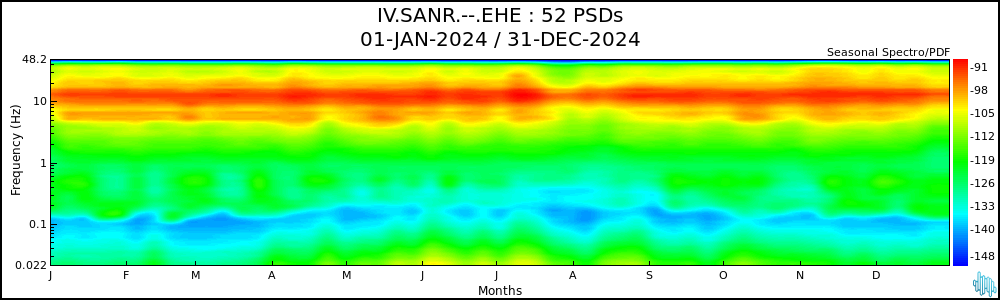

E HN Img Img 60

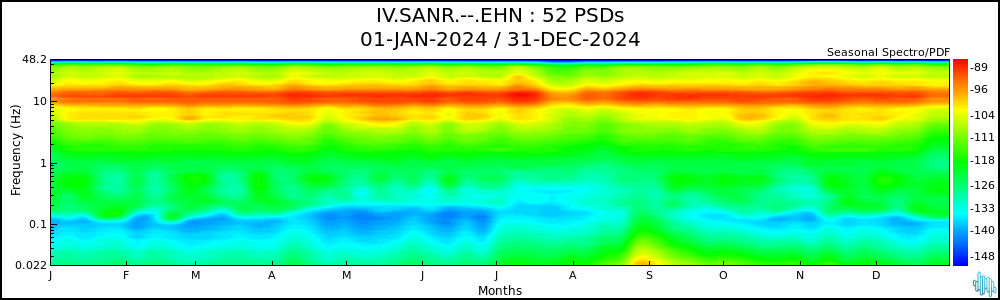

N HN Img Img 60

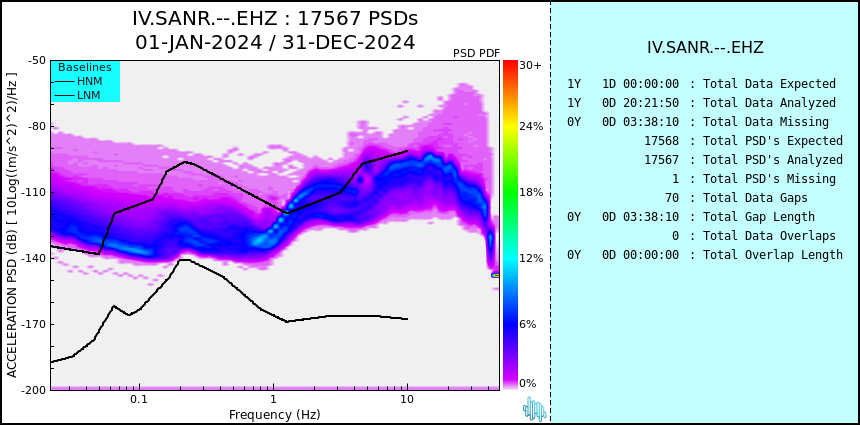

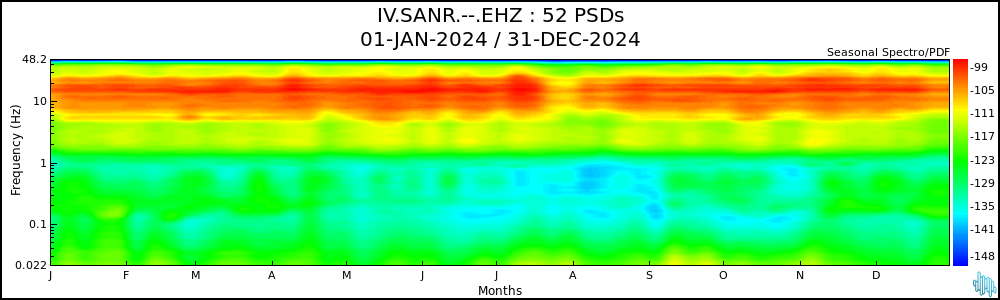

Z HN Img Img 60

Geology

Stratigraphy
Site name Reference System Latitude [°] Longitude [°] Drilling ID Depth [m] Elevation [m] Source Site Distance [m] Drilling Date
SANR GCS_WGS_1984 45.6255 11.6161 158318 132 water well 2400
SANR GCS_WGS_1984 45.6399 11.6188 158324 56 water well 1000
Geological Review
Preferred Bibliography Monography Conceptual Model Value
Yes BONOMO R., D’AMBROGI C., D’OREFICE M., FIORENZA D., GAFÀ R. M. MONTI G.M., Di MANNA M., ROMA M., VITA L., Final Report Development of a conceptual geological model for five seismic station with accelerometer of the INGV Seismic Network, Internal Report ISPRA-INGV (2017)
download 0
No Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 5
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
No BASIN 30.00000 ANGLE_LE15 1.00000 Img
Yes BASIN 10.00000 ANGLE_LE15 0.23000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio PADOVA ISPRA 2010 B3 unconsolidated Sand-gravel terreni a granulometria grossolana (g), media-grossolana (m+g) 1
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio PADOVA INSPIRE alluvioni ghiaioso-sabbiose alluvial_plain_setting Quaternary - Quaternary sedimentary_layering deposition_from_moving_fluid
Fault Classification
No Data Available
Landslide Classification
No Data Available
Cross Section
Cartography Geological
Cross Section 		Latitude 1 [°] Longitude 1 [°] Latitude 2 [°] Longitude 2 [°] Spatial Ref Sys
Foglio PADOVA - Carta Geologica d’Italia 1:100,000 Img 45.64403 11.60536 45.63638 11.61445 GCS_WGS_1984

Seismology

HVEQ
No Data Available
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 24/05/2016 00:00:00 25/05/2016 00:00:00 0.1 15 EH Img Img 3
SSREQ
No Data Available
Signal Polarization
Preferred Type Start time End time Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture ellipticity Picture dip Picture strike Number of peaks Number of earthquake
Yes Noise 24/05/2016 00:00:00 25/05/2016 00:00:00 0.1 15 EH Img Img Img 3 0

Geophysics

Subsoil Model
Id Type Investigation Pref. Latitude [°] Longitude [°] Elevation [m] Figure Monography
14 VELOCITY_PROFILE SA YES 45.639971 11.609983 52 Img Img

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 No Slope: 0.34°, Vs30: 296 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2024-02-22 17:27:24
DEM T1 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-22 17:27:23
DEM T1 No dem_30m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-10 10:26:45
OTHER T1 No GoogleEarth EC8 2022-02-10 10:26:59
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY C No Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-18 08:26:15
GEOLOGY C No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:56
GEOLOGY C No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
ARRAY_MEASUREMENT C Yes Vseq=326 m/s derived from the bibliography velocity profile NTC18 Mascandola C., Lovati S., Santulin M., Massa M., Site characterization of the INGV station IV.SANR –SANDRIGO, Working group INGV of DPC-INGV 2016 agreement All. B2 Task B (2016)
2022-02-15 09:36:40
ARRAY_MEASUREMENT C Yes Vs30=326 m/s EC8 Mascandola C., Lovati S., Santulin M., Massa M., Site characterization of the INGV station IV.SANR –SANDRIGO, Working group INGV of DPC-INGV 2016 agreement All. B2 Task B (2016)
2022-02-15 09:36:41
GEOLOGY D No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-15 09:36:42
