Site MCT

MCT

Montecammarata, Agrigento

  • Id: 175
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 37.618619
  • Longitude [°]: 13.607738
  • Elevation [m]: 1568
  • StartTime: 01/03/2003 00:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Montecammarata, Agrigento
  • Site Name: MCT
  • Station Name: IV.MCT
  • Sensors: LENNARTZ LE3D-20S (m/s)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing


Instrument Housing
No Data Available
Data Quality

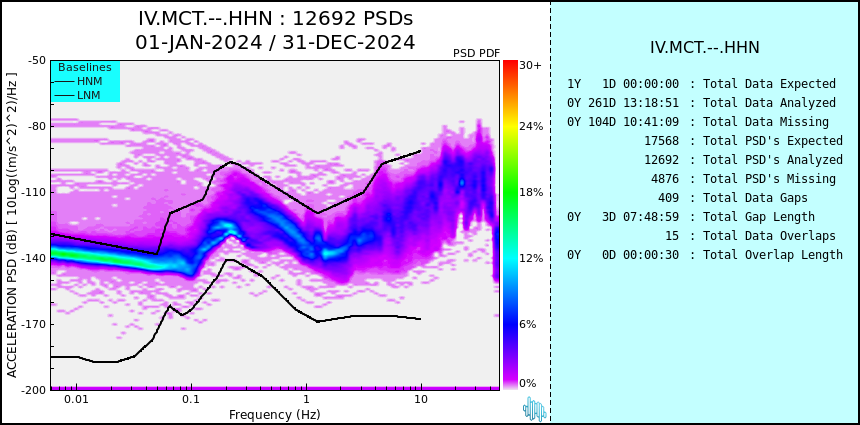

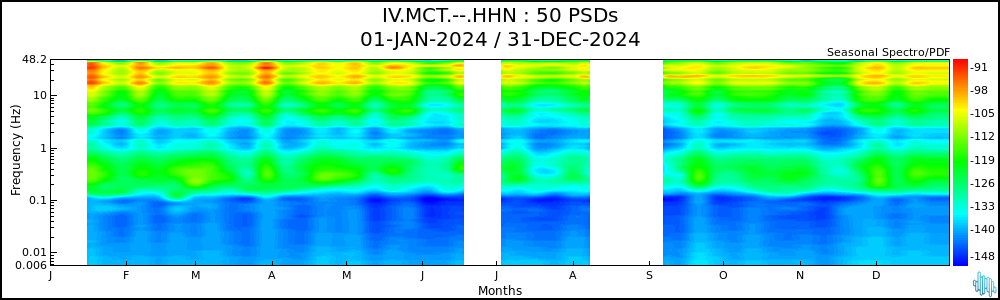

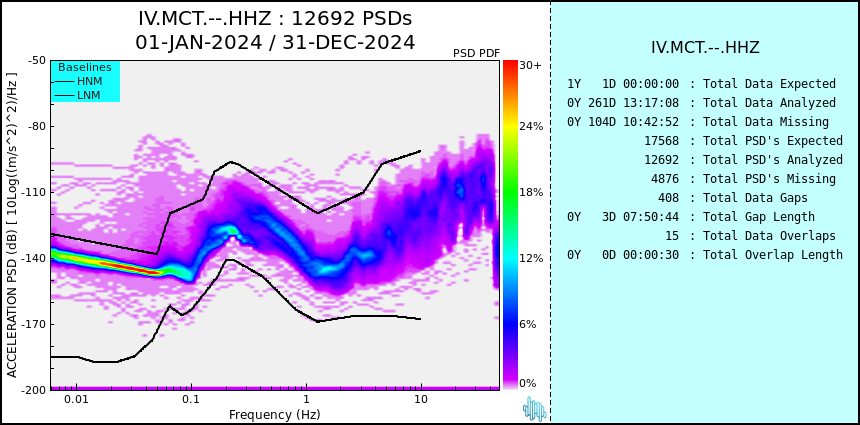

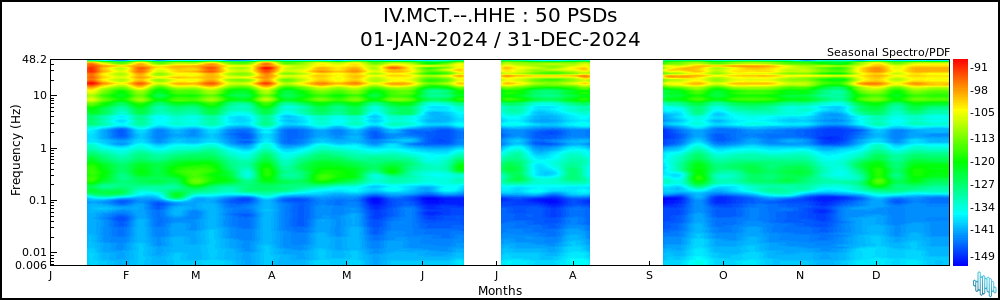

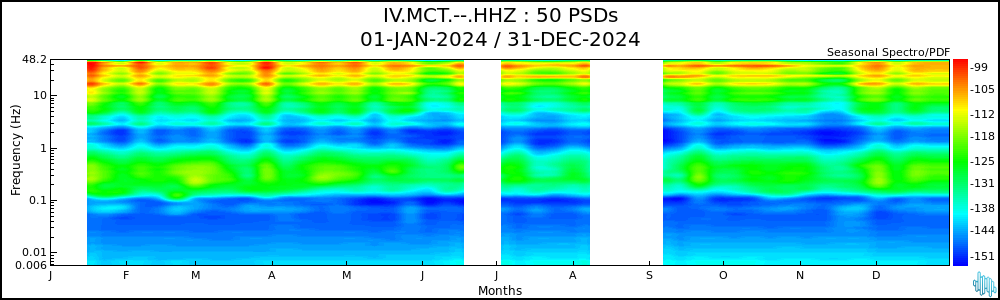

Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values
E BH Img Img 97
N BH Img Img 97
Z BH Img Img 97

Geology


Stratigraphy
No Data Available
Geological Review
Preferred Bibliography Monography Conceptual Model Value
Yes Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 2
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
Yes RELIEF 10.00000 ANGLE_GT15_LE30 16.91000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio CANICATTI' ISPRA 2010 A1 consolidated Limestone calcilutiti, calcareniti,calciruditi; calcari dolomitici, calcari selciferi, 3
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio CANICATTI' INSPIRE calcare subcristallino marine_setting Lower Jurassic - Lower Jurassic parallel_bedding deposition_from_water
Fault Classification
No Data Available
Landslide Classification
No Data Available
Cross Section
No Data Available

Seismology


HVEQ
No Data Available
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 01/01/2020 00:00:00 31/12/2020 00:00:00 0.1 15 HH Img 3
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics


Subsoil Model
No Data Available

Site classification


Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T3 No Slope: 4.27°, Vs30: 554 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2024-02-19 16:55:58
DEM T3 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-19 16:55:58

Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B Yes Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-26 13:08:05
GEOLOGY A Yes Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-08-10 16:58:02
GEOLOGY A No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
GEOLOGY A No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-15 12:16:38
