FOSV
Fossato di Vico, Perugia
- Id: 118
- Spatial Reference System:
GCS_WGS_1984
- Latitude [°]: 43.294683
- Longitude [°]: 12.761273
- Elevation [m]: 557
- StartTime: 02/08/2011 10:00:00
- EndTime:
- Type: PERMANENT
- Description: Fossato di Vico, Perugia
- Site Name: FOSV
- Station Name: IV.FOSV
-
Sensors:
|
LENNARTZ LE3D-5S (m/s); KINEMETRICS EPISENSOR-FBA-ES-T-CL-2G-FS-40-VPP (m/s**2)
|
- Q Final:
- Allegato:
- Note:
Housing
Picture Sensor |
Picture Site |
Picture Panorama |
Coupling |
Insulating |
Housing |
Note |
Noise source |
|
|
|
|
FLOOR |
MEDIUM |
BUILDING |
|
0 |
|
Component |
Band Instrument |

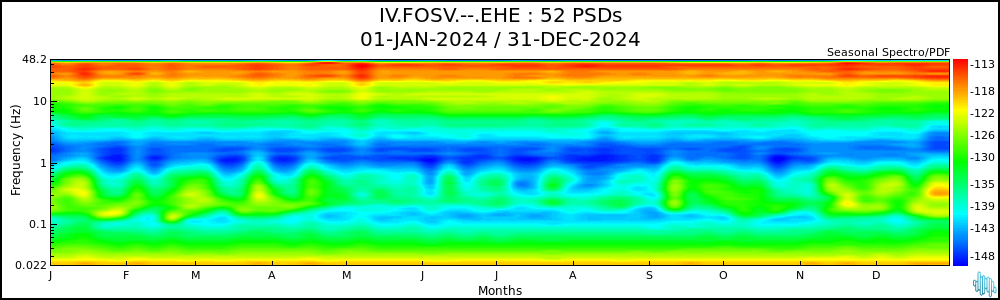

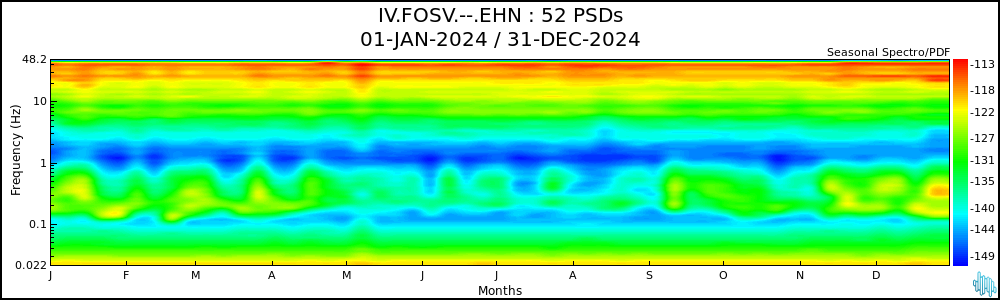

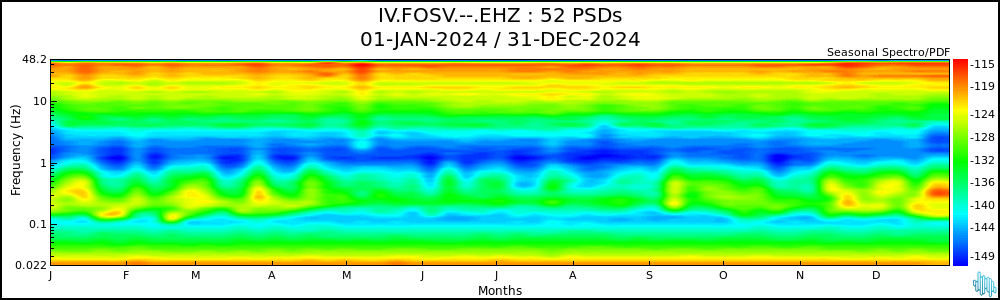

Seasonal noise figure |

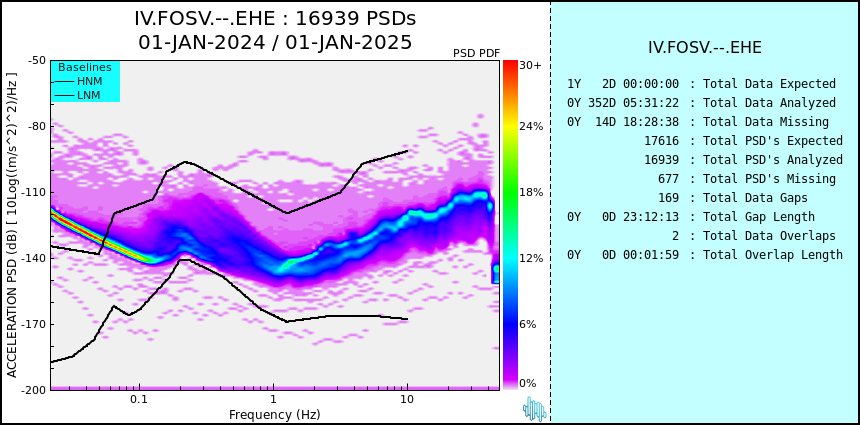

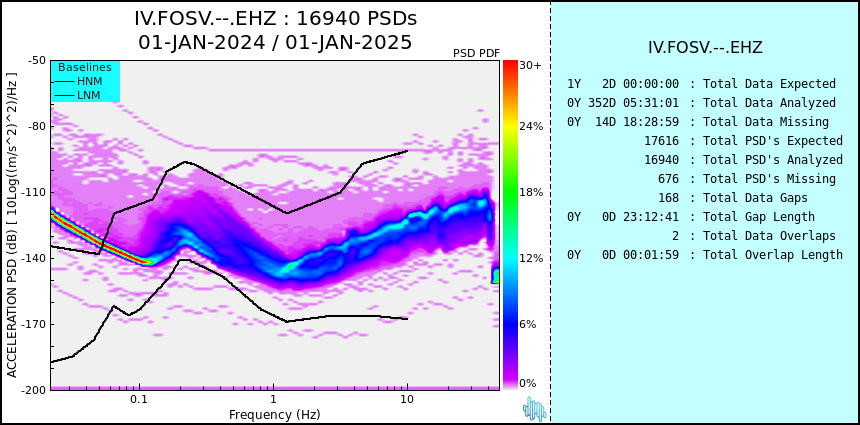

Annual noise figure |
Data Quality Values |
|
E |
EH |
|
|
97 |
|
N |
EH |
|
|
97 |
|
Z |
EH |
|
|
97 |
|
Geology
Preferred |
Bibliography |
Monography |
Conceptual Model Value |
|
Yes |
Monti G. M.,
Martarelli L.,
Gafà R. M.,
Olivetta L.,
Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV,
INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti)
(2016)
|
download
|
2 |
|
Morphological classification
Preferred |
Type |
Note |
Dem Resolution [m] |
Slope Range |
Slope [°] |
Slope Range Figure |
|
No |
RELIEF |
|
30.00000 |
ANGLE_GT15_LE30 |
26.97000 |
|
|
Yes |
RELIEF |
|
10.00000 |
ANGLE_GT15_LE30 |
23.94000 |
|
|
Lithological Classification
Preferred |
Cartography Code |
Coding Type |
Lithological Unit Code |
Volumetric Joint Count |
Consolidation Degree |
Lithologic Class |
Lithologic Description |
Number Of Lithology Subdivision |
|
Yes |
Foglio Carta Litologica d’Italia 1:100,000 - Foglio ASSISI |
ISPRA 2010 |
A3 |
|
well_indurated |
Marly limestone |
calcari marnosi, marne calcaree, alternanze calcari-marne, calcari-argille, dolomie-marne, dolomie-argille |
3 |
|
Geological Classification
Preferred |
Cartography code |
Coding type |
Geological unit extended name |
Environmental settings |
Age (Older - Younger) |
Rock mass structure |
Event Process |
|
Yes |
Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio ASSISI |
INSPIRE |
formazione della scaglia cinerea |
marine_setting |
Eocene - Oligocene |
parallel_bedding |
deposition_from_water |
|
Seismology
Preferred |
Frequency range min [Hz] |
Frequency range max [Hz] |
Band Instrument |
Picture of rotated ratio |
Picture of ratio |
Number of peaks |
Number of earthquake |
|
Yes |
0.5 |
15 |
EH |
|
|
0 |
463 |
|
Preferred |
Start time |
End time |
Noise variability types |
Frequency range min [Hz] |
Frequency range max [Hz] |
Band Instrument |
Picture of rotated ratio |
Picture of ratio |
Number of peaks |
|
Yes |
01/06/2015 00:00:00 |
01/06/2015 23:59:50 |
NONE |
0.1 |
15 |
HH |
|
|
0 |
|
Geophysics
Site classification
Topography Class Type |
Topography Class Value |
Topography Class Preferred |
Topography Class Note |
Seismic Code Type |
Bibliography |
Last Update |
|
DEM |
T4 |
No |
Slope: 23.33°, Vs30: 1180 m/s |
NTC18 |
C. Mascandola, L. Luzi, C. Felicetta and F. Pacor,
A GIS procedure for the topographic classification of Italy, according to the seismic code provisions,
Soil Dynamics and Earthquake Engineering,
(2021)
|
2024-02-18 11:50:14 |
|
DEM |
NC |
No |
dem_10m |
EC8 |
V. Pessina and E. Fiorini,
A GIS procedure for fast topographic characterization of seismic recording stations,
Soil Dynamics and Earthquake Engineering,
(2014)
|
2022-02-07 13:22:19 |
|
DEM |
NC |
No |
dem_30m |
EC8 |
V. Pessina and E. Fiorini,
A GIS procedure for fast topographic characterization of seismic recording stations,
Soil Dynamics and Earthquake Engineering,
(2014)
|
2022-02-07 13:22:58 |
|
OTHER |
T2 |
No |
GoogleEarth |
EC8 |
|
2024-02-18 11:50:23 |
|
Soil Class Type |
Soil Class Value |
Soil Class Preferred |
Soil Class Note |
Seismic Code Type |
Bibliography |
Last Update |
|
GEOLOGY |
B |
Yes |
Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 |
EC8 |
Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G.,
A new Vs30 map for Italy based on the seismic microzonation dataset,
Engineering Geology,
(2020)
|
2023-05-26 12:54:27 |
|
GEOLOGY |
E |
Yes |
Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip |
NTC18 |
Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I.,
Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements,
Soil Dynamics and Earthquake Engineering,
(2019)
|
2023-08-10 17:16:26 |
|
GEOLOGY |
A |
No |
Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip |
EC8 |
Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I.,
Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements,
Soil Dynamics and Earthquake Engineering,
(2019)
|
2023-05-18 08:25:18 |
|
GEOLOGY |
B |
No |
from di Capua et al. 2016 |
EC8 |
Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G.,
Site classification map of Italy based on surface geology,
Geological Society, London, Engineering Geology Special Publications,
(2016)
|
2022-02-15 10:29:56 |
|
